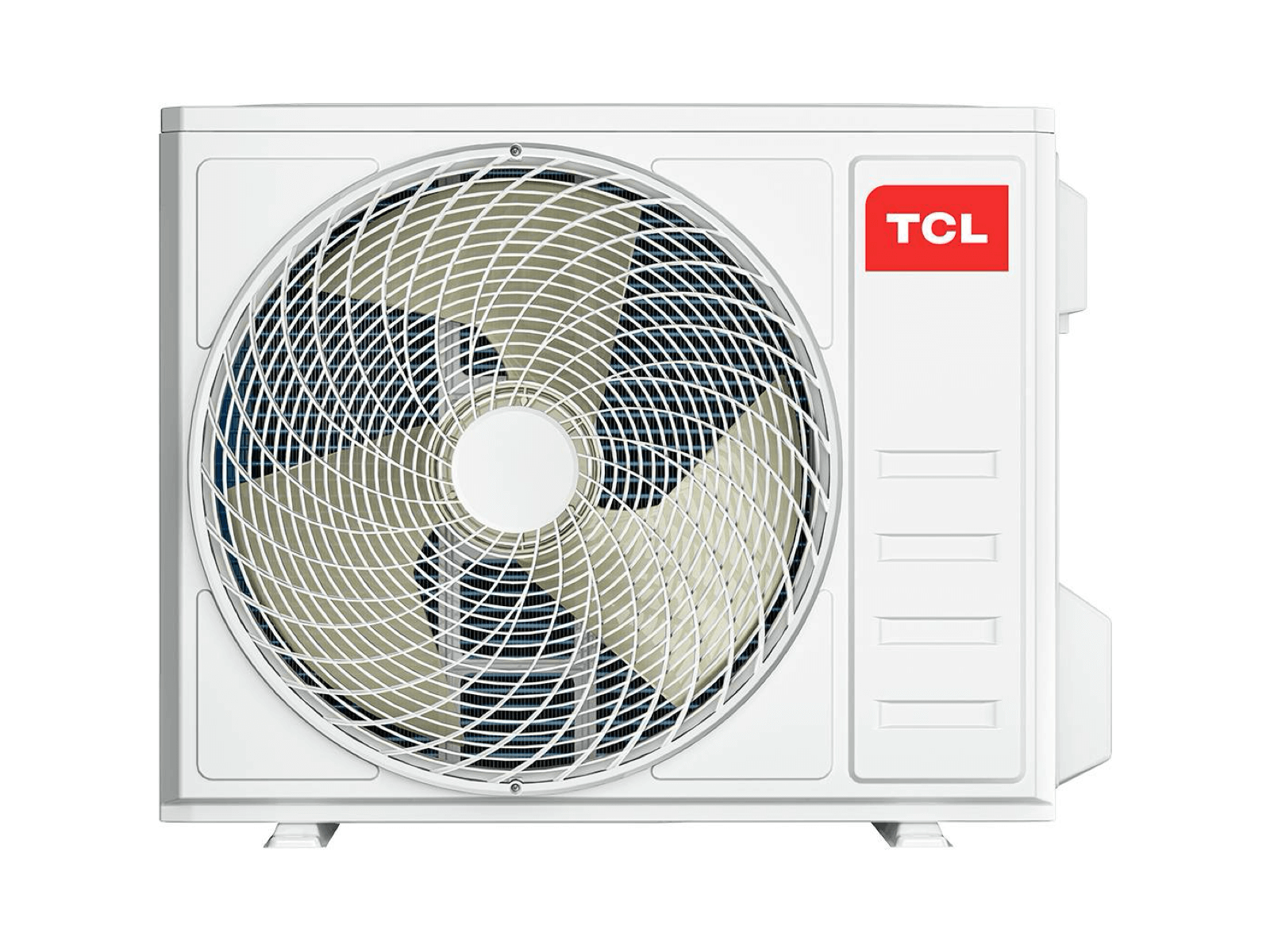

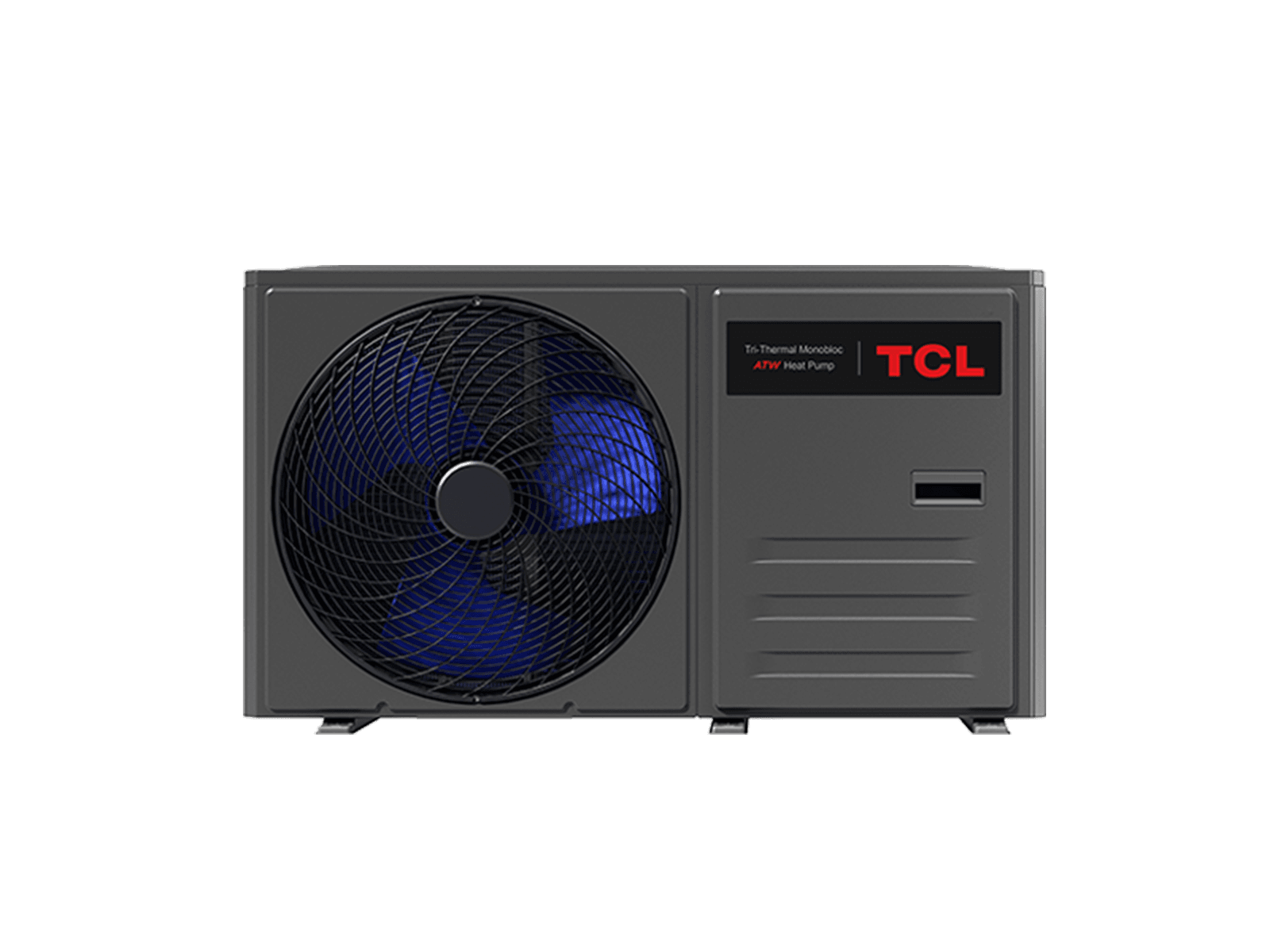

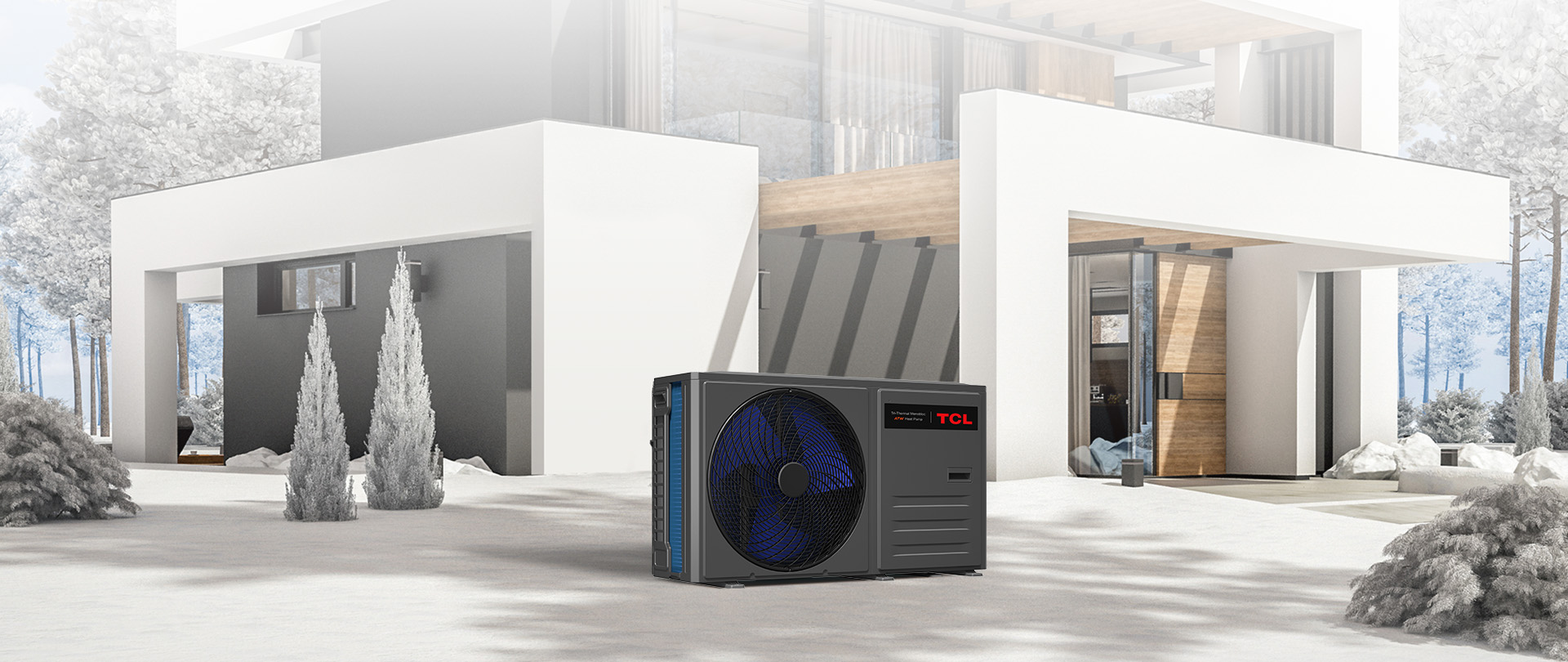

R290 Tri-thermal ATW Heat Pump

R290 Tri-thermal
ATW Heat Pump

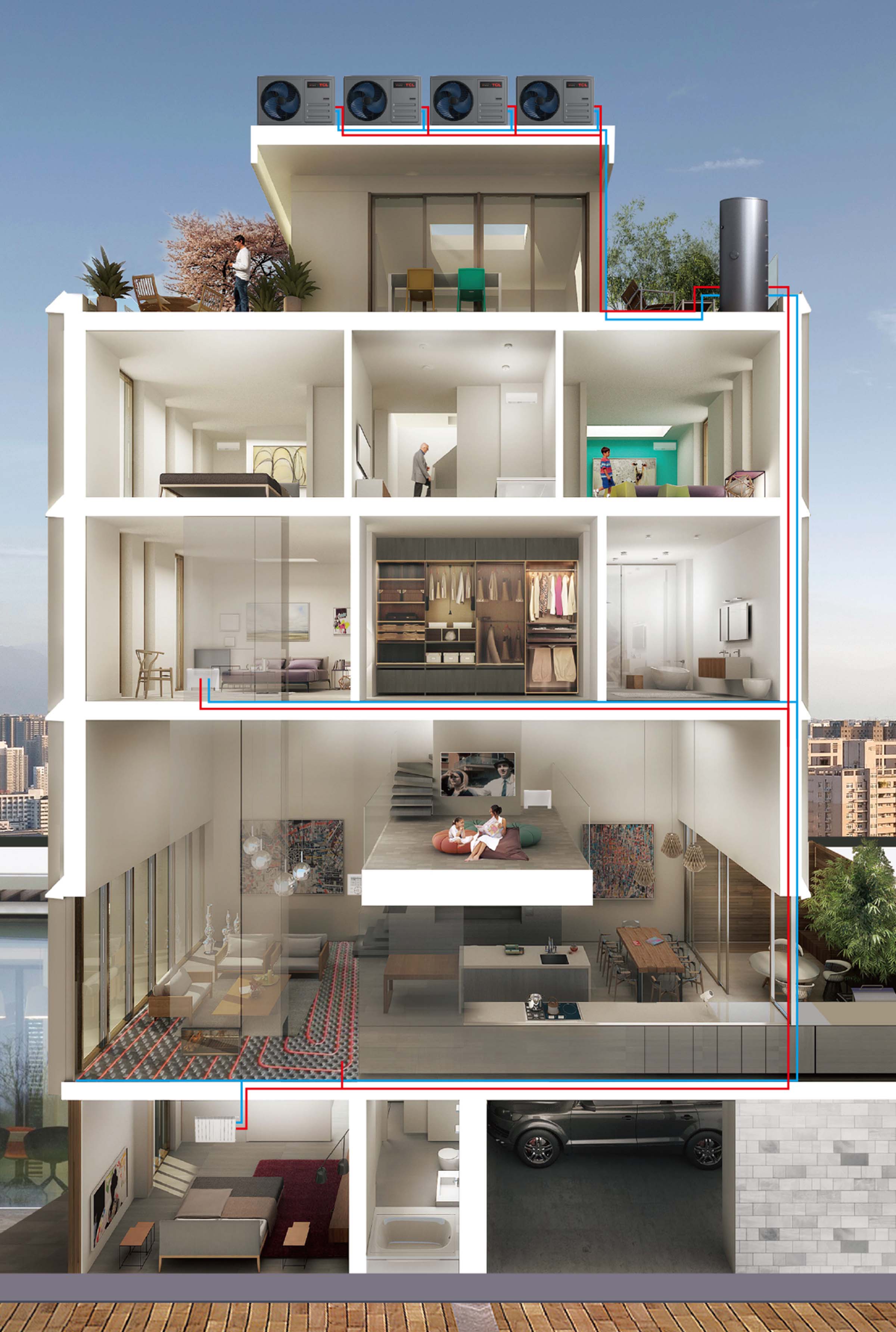

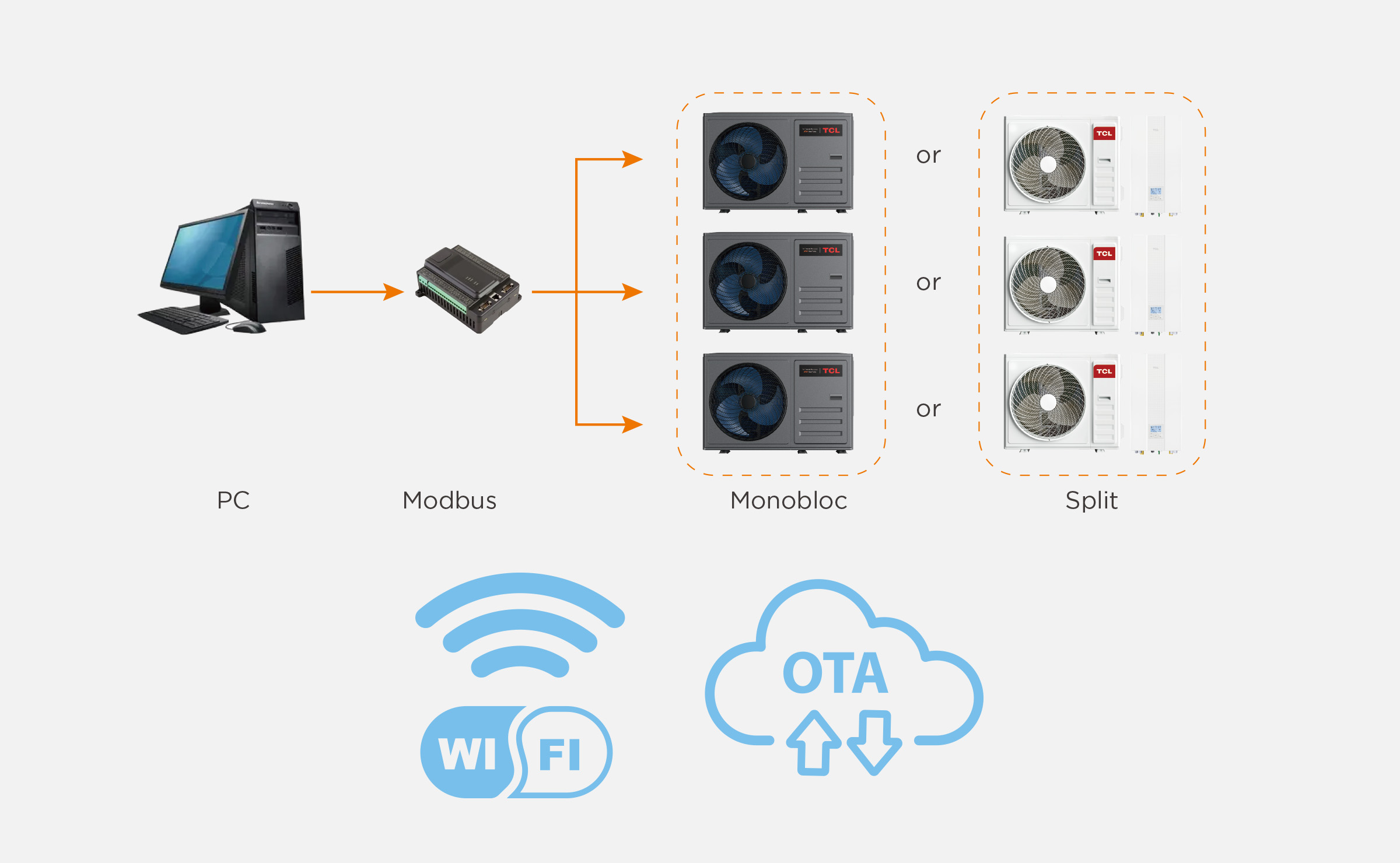

Cascade system control

Maximum 8 units can be combined to reach maximum 128kw

Cascade system control

Maximum 8 units can be combined to reach maximum 128kw

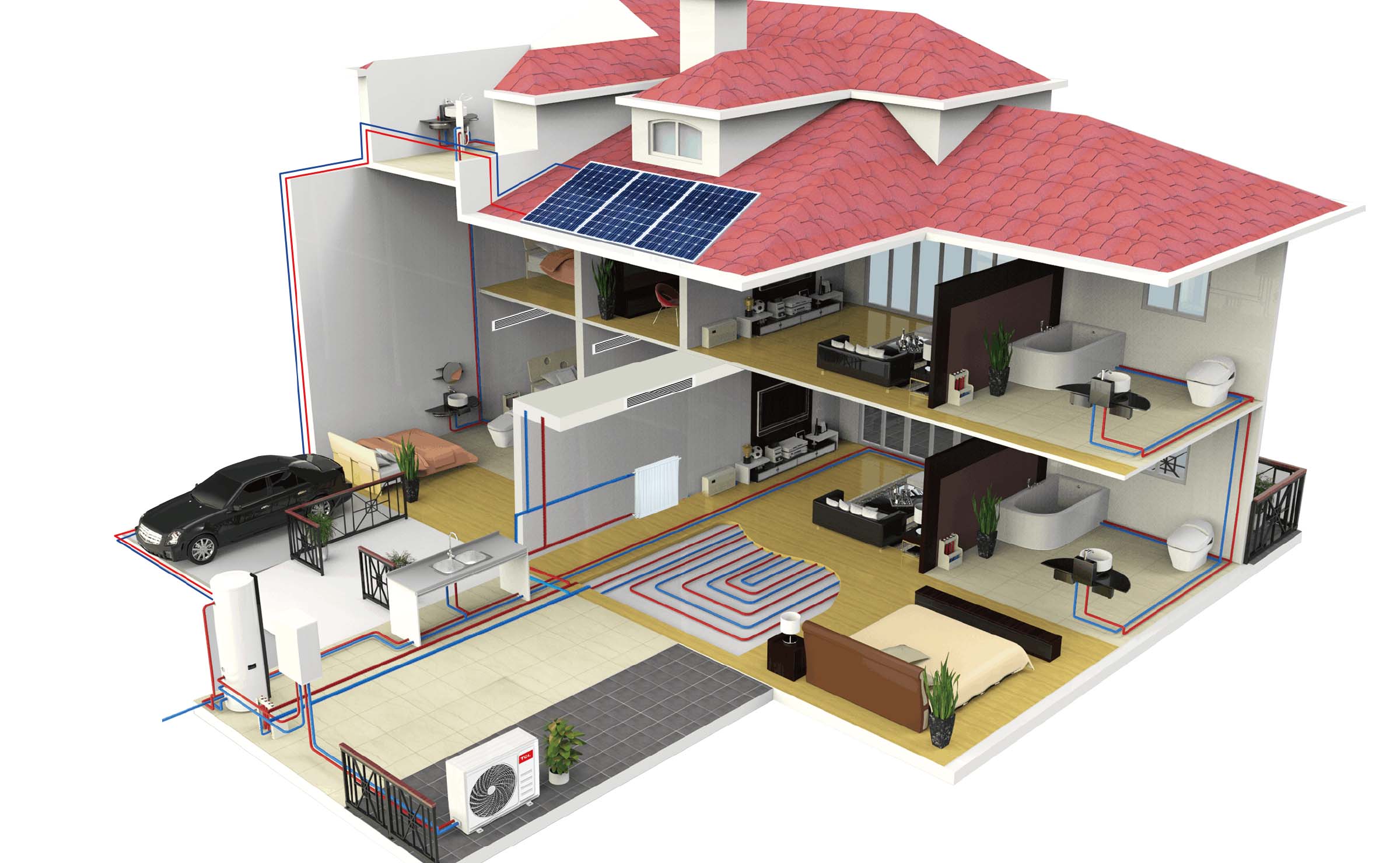

Heating, cooling, hot water with complete solutions, to the creative life

Tri-thermal is an integrated system that provides space heating and cooling as well as domestic hot water, offering a complete,
all-year-round solution which can remove the need for traditional gas or oil boilers, or work together with them.

Heating, cooling, hot water with complete solutions, to the creative life

Tri-thermal is an integrated system that provides space heating and cooling as well as domestic hot water, offering a complete, all-year-round solution which can remove the need for traditional gas or oil boilers, or work together with them.

High Efficient and Energy Saving

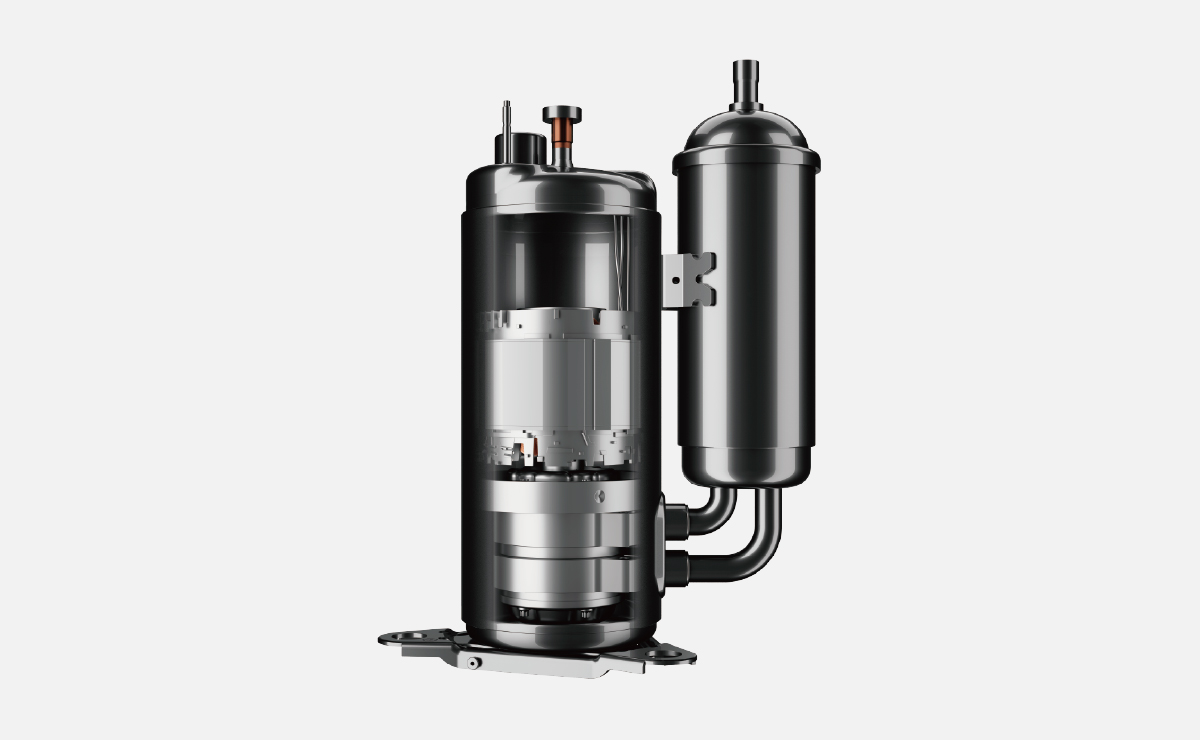

Well-known brand DC inverter compressor (GMCC)

· High reliability electrical design
· Large pressure ratio design
· Low oil output design
· DC Inverter motor design
· Low noise vibration design
· High reliability volume design

Well-known brand DC inverter compressor（GMCC）

· High reliability electrical design
· Large pressure ratio design
· Low oil output design
· DC Inverter motor design
· Low noise vibration design
· High reliability volume design

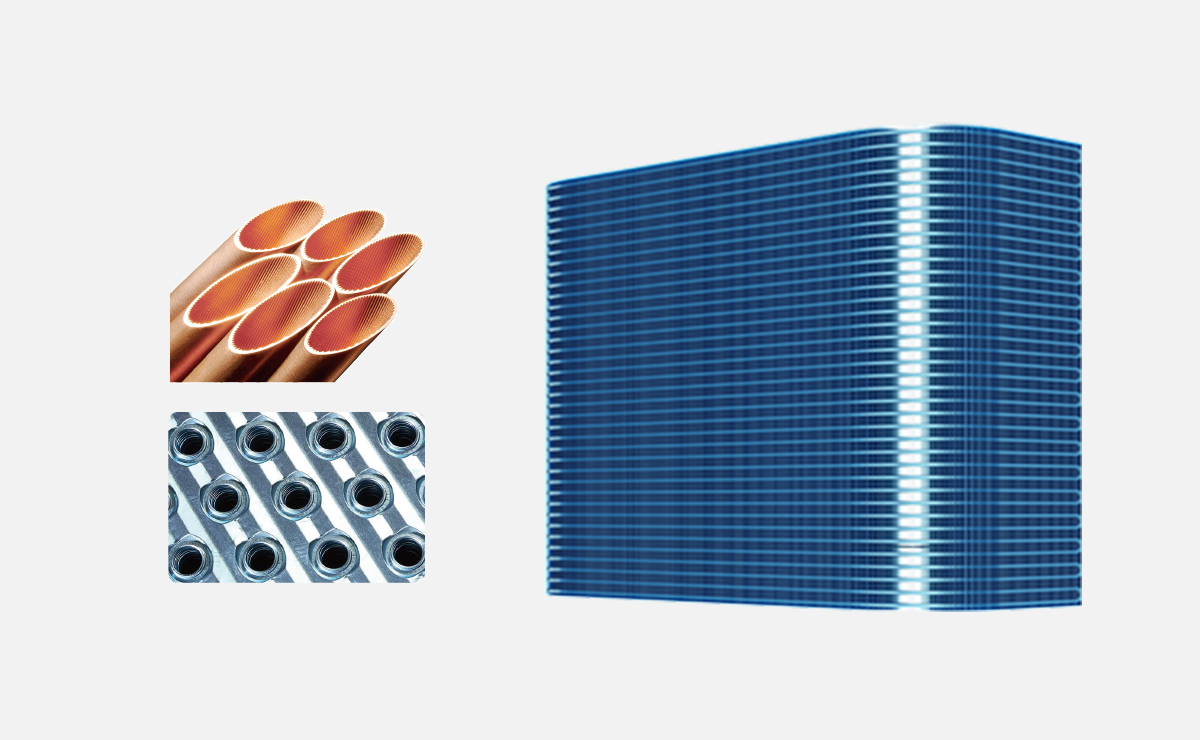

High-efficiency L-type heat exchanger

Adopting advanced 3-D dynamic analysis and cross-flow path design,
air volume increased 8%, heat exchange more efficient.

High-efficiency L-type heat exchanger

Adopting advanced 3-D dynamic analysis and cross-flow path design, air volume increased 8%, heat exchange more efficient.

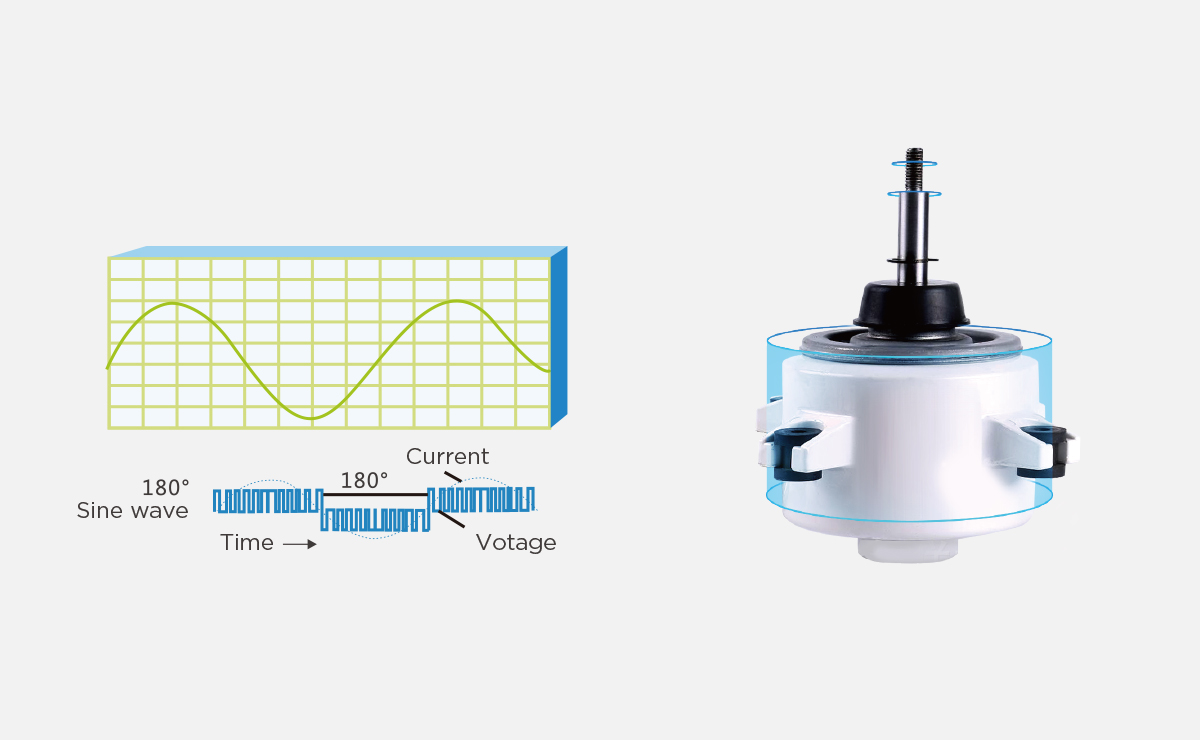

Stepless inverter fan motor

· Realize stepless speed regulation, and reduce power consumption by 20% compared with AC motors
· Original built-in drive, high motor efficiency, more reliable
· Stepless regulation of air volume, precise control
· Quiet operation Insulation grade E

Stepless inverter fan motor

· Realize stepless speed regulation, and reduce power consumption by 20% compared with AC motors
· Original built-in drive, high motor efficiency, more reliable
· Stepless regulation of air volume, precise control
· Quiet operation Insulation grade E

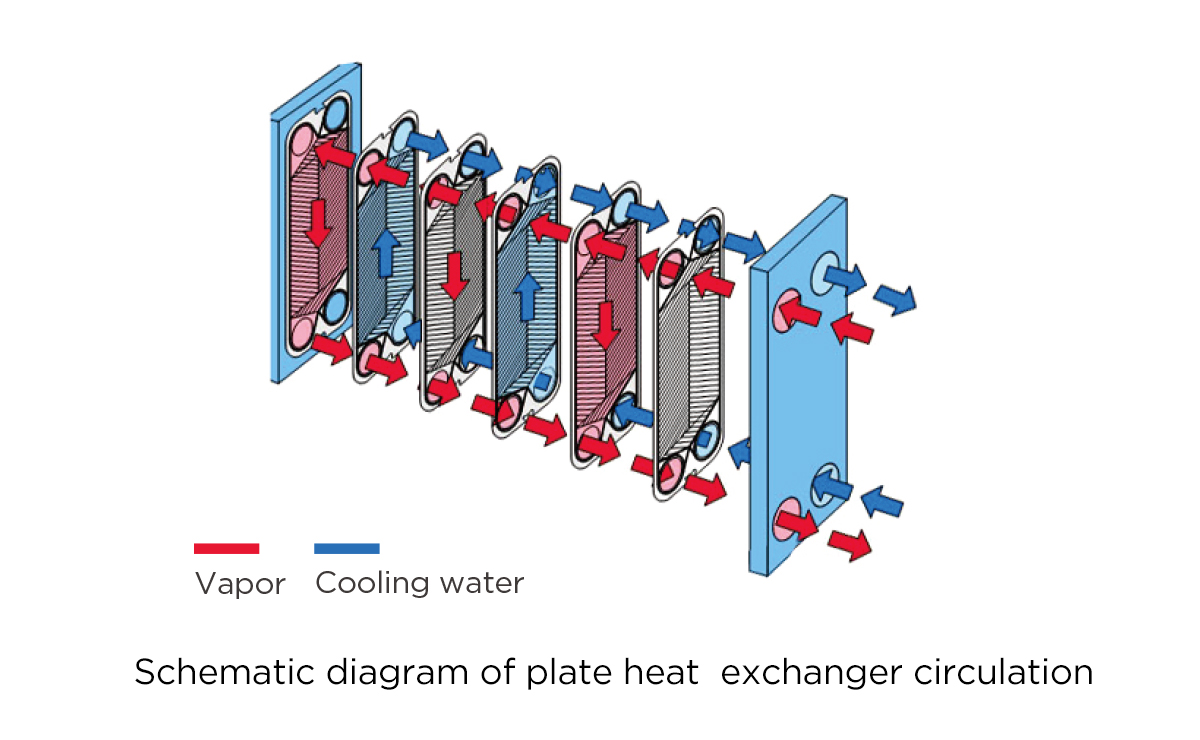

Plate heat exchanger

· Withstand high temperature and high pressure
· Compact design, smaller volume and less pressure drop
· High anti-corrosion performance
· High thermal efficiency and lower fouling factor
· Easy installation and maintenance
· Under the same pressure loss, the heat transfer coefficient of the plate heat exchanger is 3~5 times higher than that of the tubular heat exchanger, covering an area of 1 / 3 of the tubular heat exchanger.

Plate heat exchanger

· Withstand high temperature and high pressure
· Compact design, smaller volume and less pressure drop
· High anti-corrosion performance
· High thermal efficiency and lower fouling factor
· Easy installation and maintenance
· Under the same pressure loss, the heat transfer coefficient of the plate heat exchanger is 3~5 times higher than that of the tubular heat exchanger, covering an area of 1 / 3 of the tubular heat exchanger.

Safe and Comfort

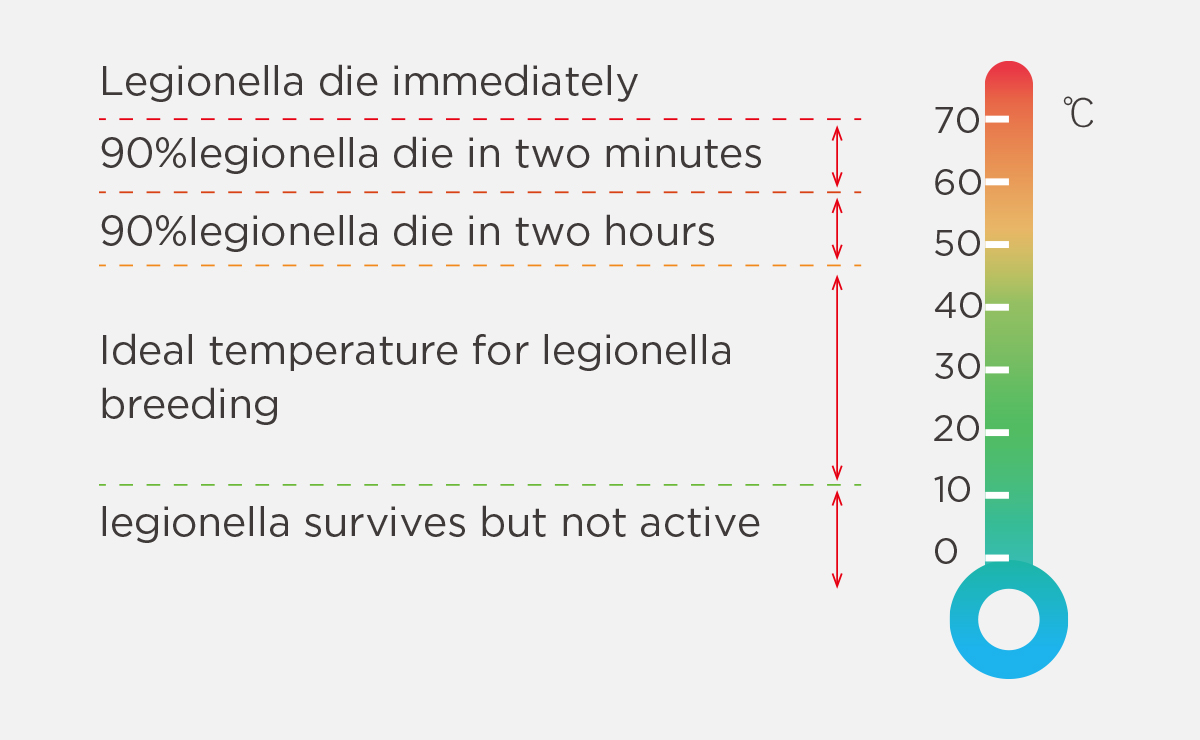

Anti-bacteria mode

· Designed to guarantee our safety and health
· 70°C hot water sterilization: kills bacteria by heating water to optimal sanitizing temperature

Anti-bacteria mode

· Designed to guarantee our safe and health.
· 70°C hot water sterilization: kills bacteria by heating water to optimal sanitizing temperature

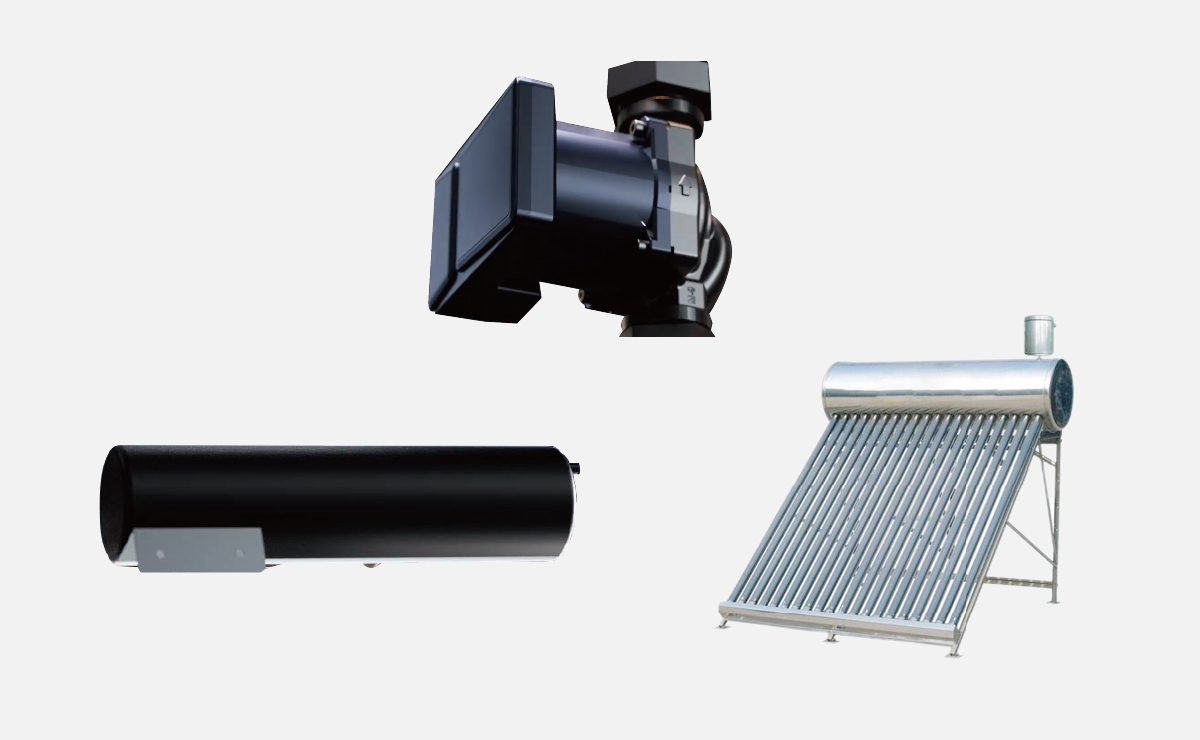

Provide DHW in time

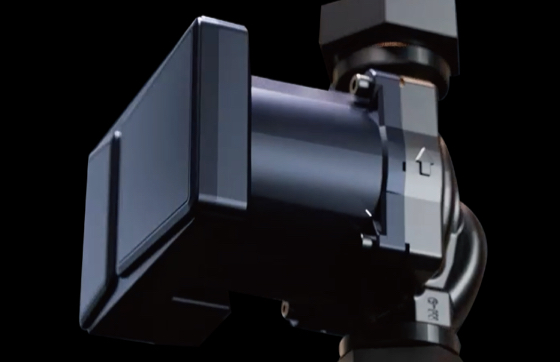

Water pump, Electrical heater, Solar kit heater

Provide DHW in time

Water pump, Electrical heater, Solar kit heater

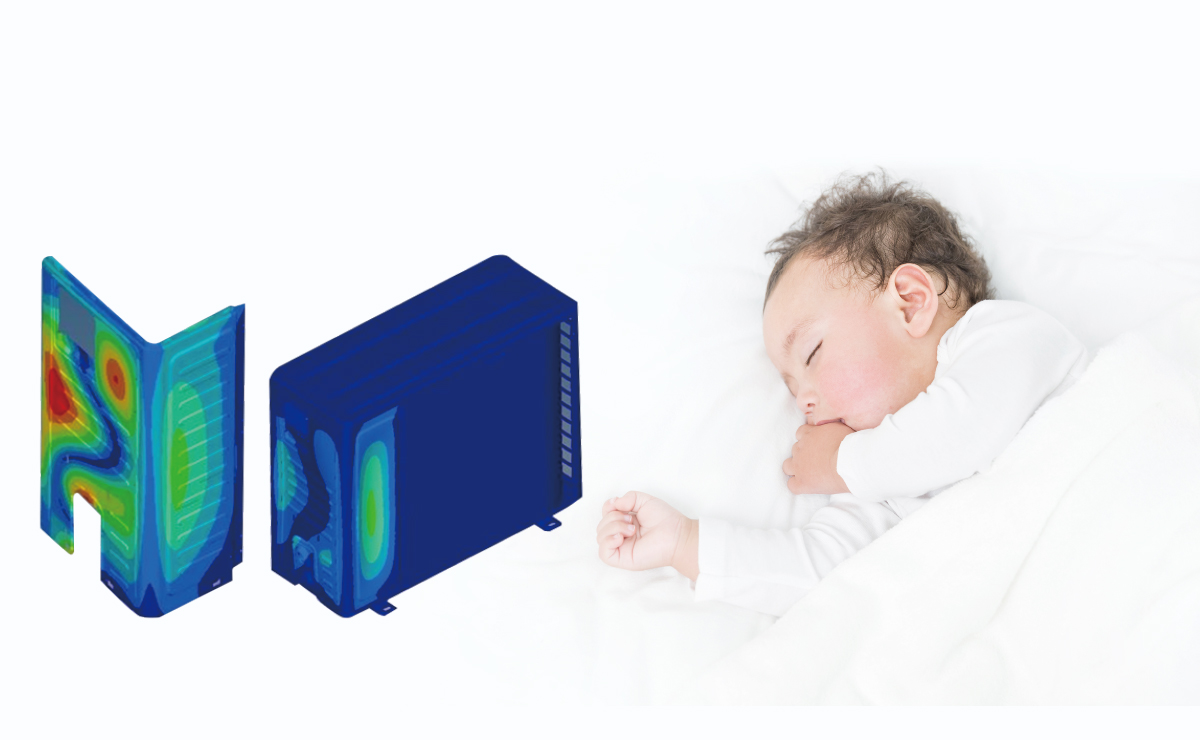

Low level of noise

· Multiple silent modes are optional: Silent mode, night silent mode, super silent mode.
· Optimized right & back side plates design
Based on the 3-D simulation, which greatly decreases the vibration and running noise.

Low level of noise

· Multiple silent modes are optional Silent mode,
night silent mode, super silent mode.
· Optimized right & back side plates design
Based on the 3-D simulation, which greatly decrease the vibration and running noise.
