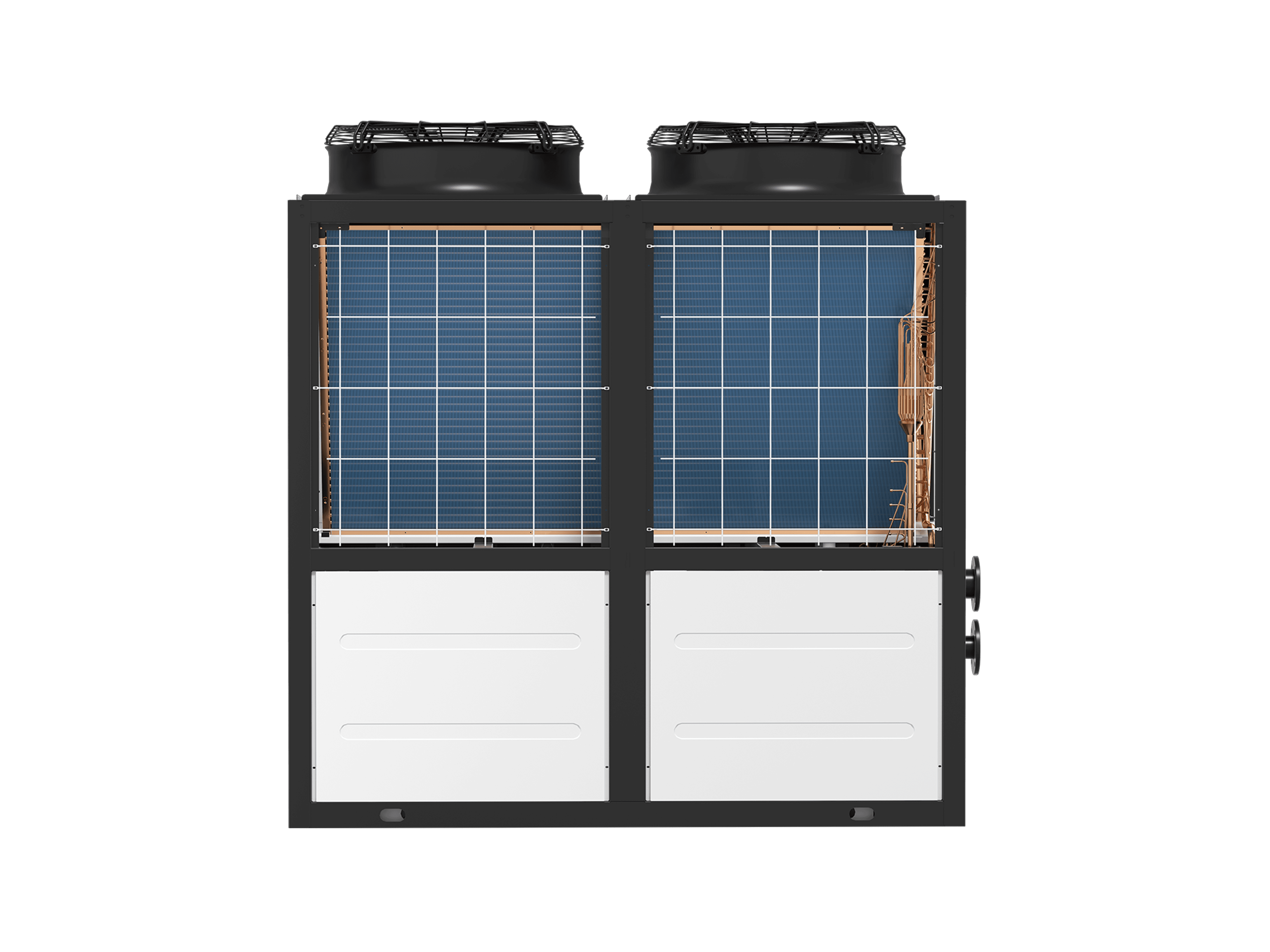

On/Off Aqua Eagle
Modular Chiller
Excellent Components

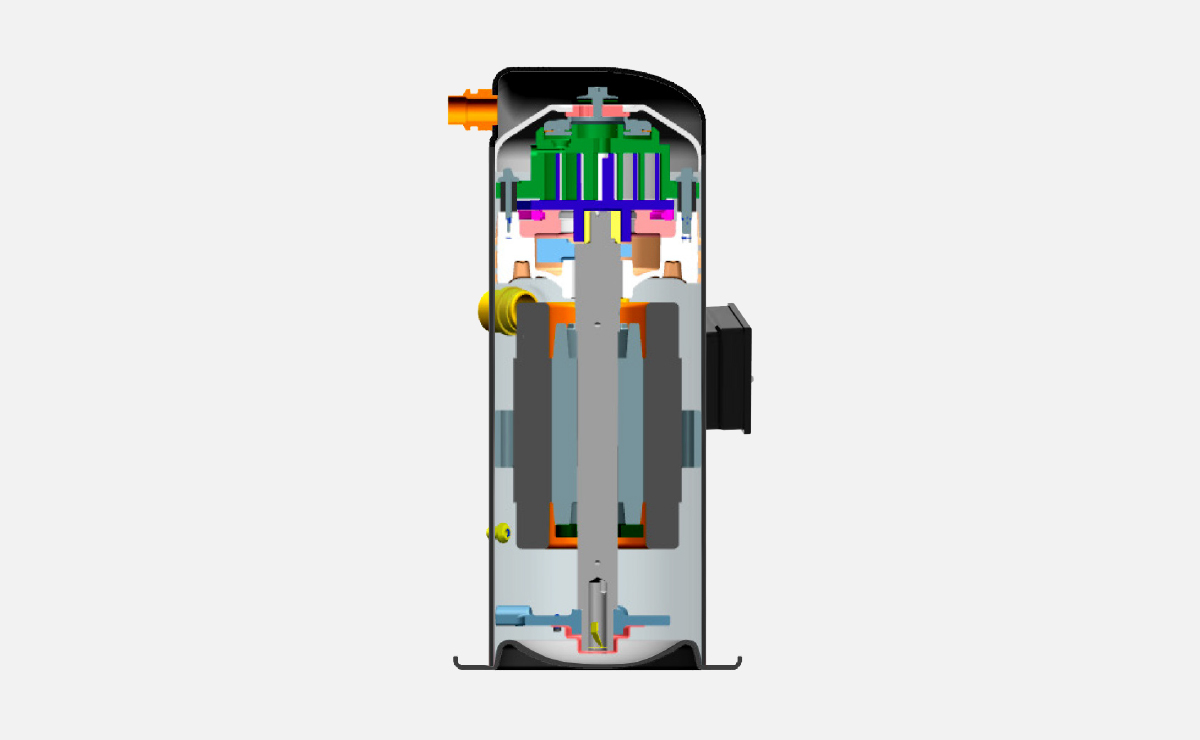

Fully Enclosed Flexible Scroll Compressor
Fully enclosed flexible scroll compressor is adopted. The contact- wear- free vortex design reduces the compressor's internal friction, realizes a higher compression ratio and strong power, and improves the unit's reliability and operating efficiency.
Fully enclosed flexible scroll compressor is adopted. The contact- wear- free vortex design reduces the compressor's internal friction, realizes a higher compression ratio and strong power, and improves the unit's reliability and operating efficiency.

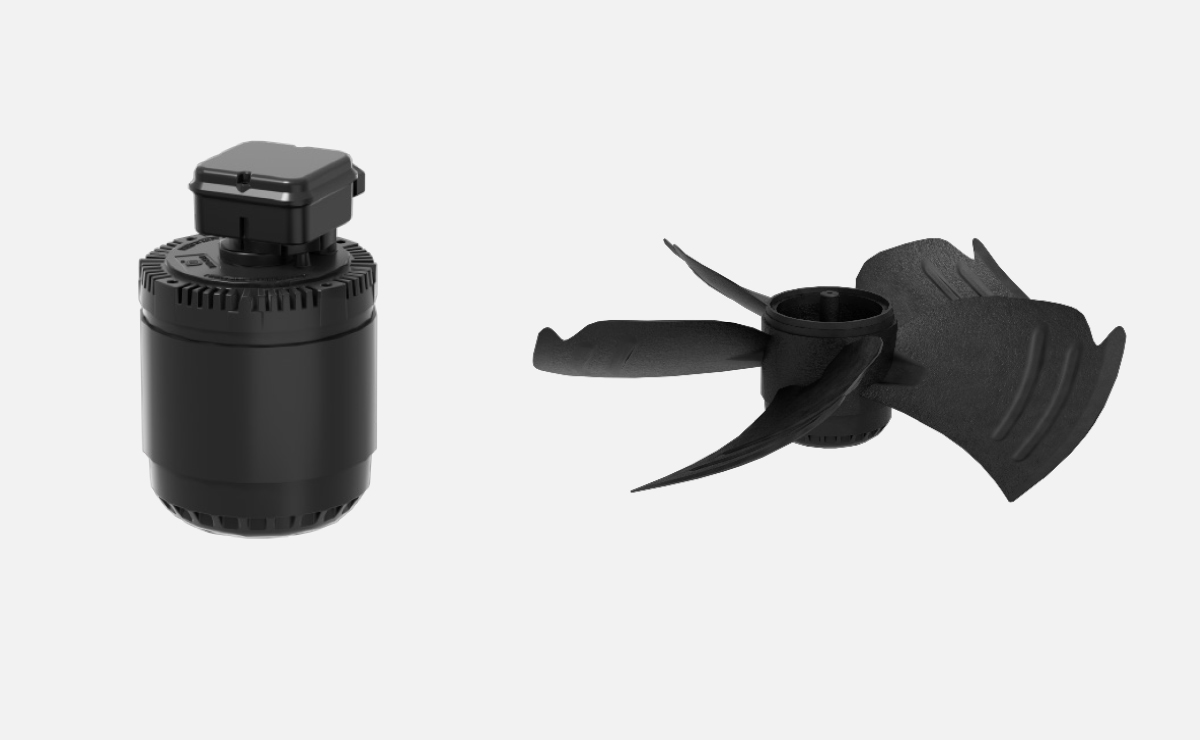

High-Efficiency and Stable, Low-Noise Motor
· Energy saving motor
· Large diameter fan
· Energy saving motor
· Large diameter fan

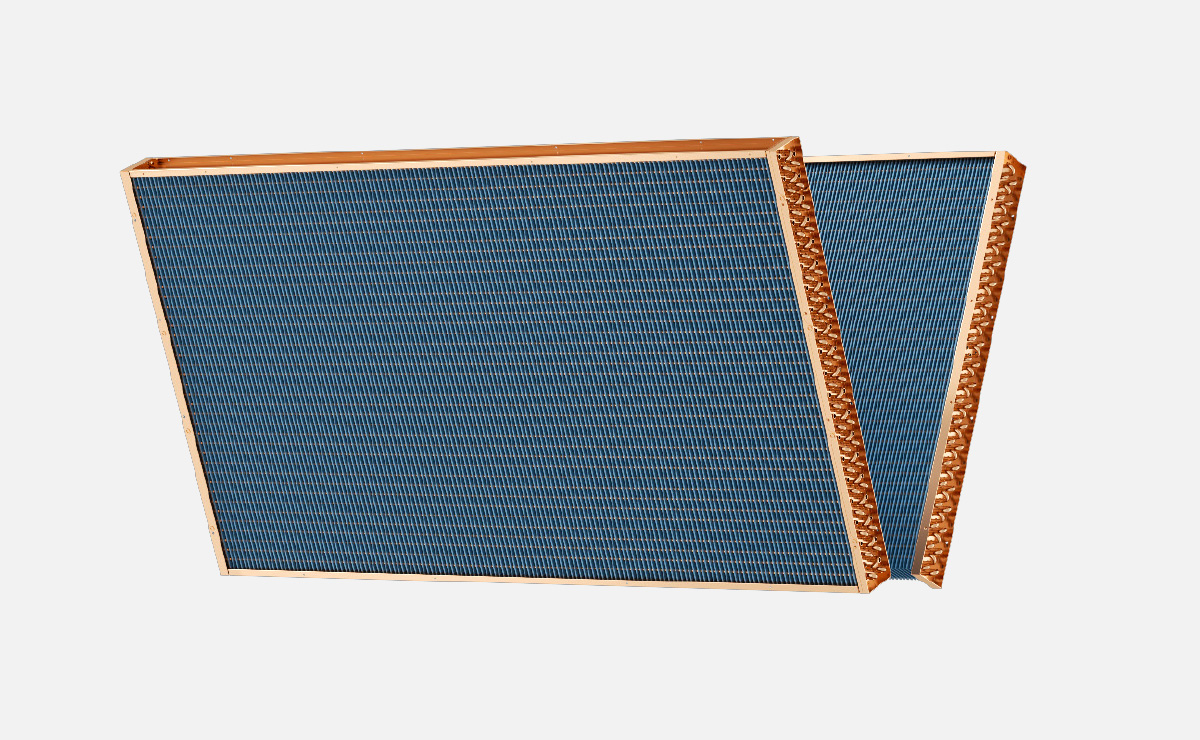

High efficiency Heat Exchanger
The air - side heat exchanger of the unit adopts a unique V shaped structure, which conforms to the characteristics of air flow distribution and has a large maintenance space. Among them, the heat exchanger is composed of hydrophilic aluminum foil high - efficiency fins and large - diameter inner - threaded copper tubes, and is fixed by a reinforced metal frame around, which greatly improves the heat transfer efficiency, enhances the corrosion resistance and oxidation resistance of the heat exchanger, and makes the defrosting and drainage more smooth.
The air - side heat exchanger of the unit adopts a unique V shaped structure, which conforms to the characteristics of air flow distribution and has a large maintenance space. Among them, the heat exchanger is composed of hydrophilic aluminum foil high - efficiency fins and large - diameter inner - threaded copper tubes, and is fixed by a reinforced metal frame around, which greatly improves the heat transfer efficiency, enhances the corrosion resistance and oxidation resistance of the heat exchanger, and makes the defrosting and drainage more smooth.

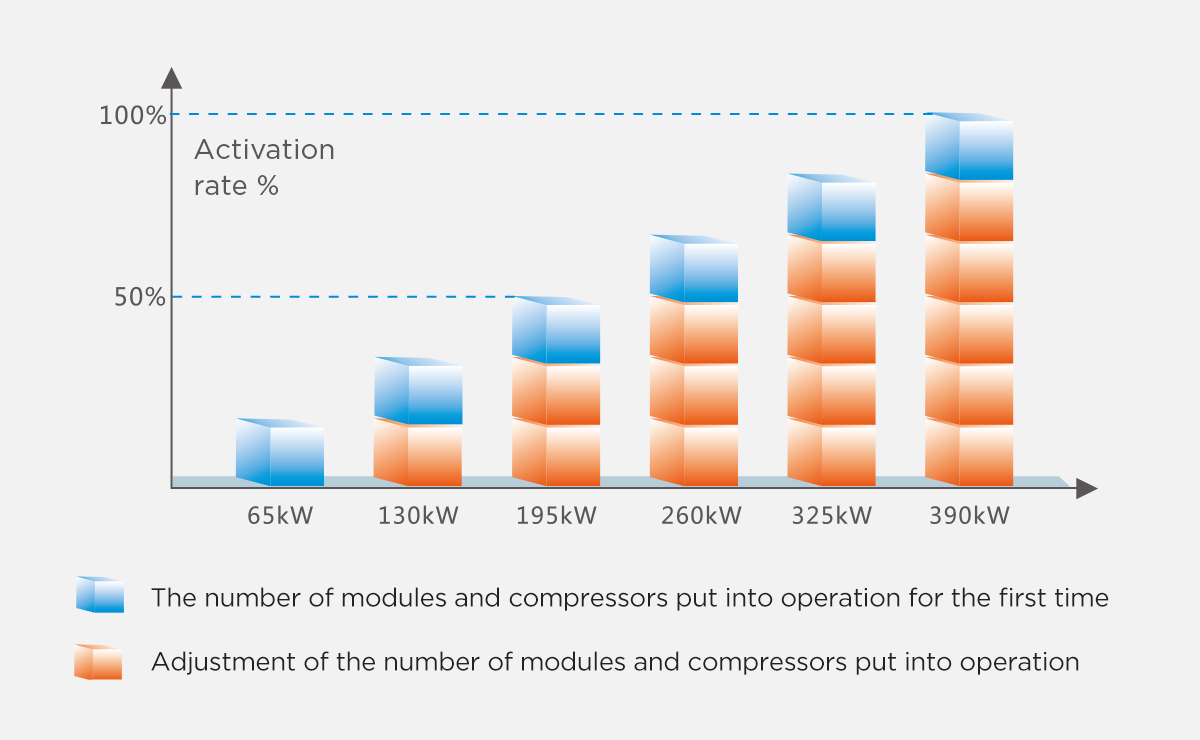

Step-by-step power adjustment for on-demand power output
The step - by - step energy regulation technology is adopted to control the number of compressors turned on in the modules within the control system and in the unit modules, so as to output energy according to actual needs.
When starting up, the number of compressors required to operate is automatically calculated according to the actual load demand, and they are started one by one and quickly reach the proper state, avoiding the drawback of all - at - once startup of ordinary heat pump units, which saves energy and electricity.
The step - by - step energy regulation technology is adopted to control the number of compressors turned on in the modules within the control system and in the unit modules, so as to output energy according to actual needs.
When starting up, the number of compressors required to operate is automatically calculated according to the actual load demand, and they are started one by one and quickly reach the proper state, avoiding the drawback of all - at - once startup of ordinary heat pump units, which saves energy and electricity.
High Energy Efficiency Ratio, Preferable For Energy Saving
High-efficiency environment-friendly R410A refrigerant is adopted, realizing green and environment-friendly performance. The composition and structure do not change easily, realizing high safety and 0 damage factor to the ozone layer (ODP).
High-efficiency environment-friendly R410A refrigerant is adopted, realizing green and environment-friendly performance. The composition and structure do not change easily, realizing high safety and 0 damage factor to the ozone layer (ODP).
Stable Operation

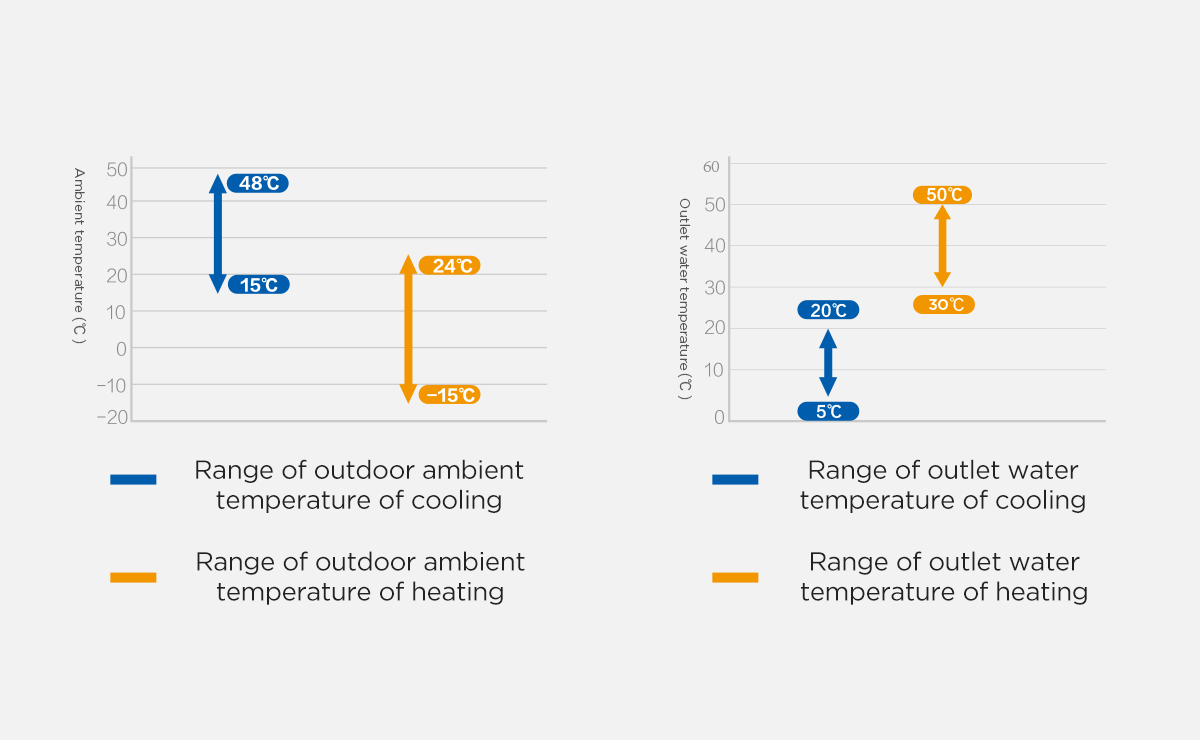

Ultra-Wide Operating Range
The unit has an ultra- wide operating range and can operate stably when the outdoor temperature is -15~48℃. The maximum heating outlet water temperature is 50℃. The minimum cooling outlet water temperature is 5℃.
The unit has an ultra- wide operating range and can operate stably when the outdoor temperature is -15~48℃. The maximum heating outlet water temperature is 50℃. The minimum cooling outlet water temperature is 5℃.
Multiple protection technologies ensure the safe and stable operation of the unit
-
Compressor high
![]()
and low pressure protection -
Fan overload protection
![]()
-
Frequent start-stop protection
![]()
-
Power supply reverse
![]()
(phase - loss) protection -
Compressor overload protection
![]()
-
Water pump overload protection
![]()
-
Water flow switch protection
![]()
-
Winter water system
![]()
anti-freezing protection -
Compressor discharge
![]()
high temperature protection -
Temperature sensor protection
![]()

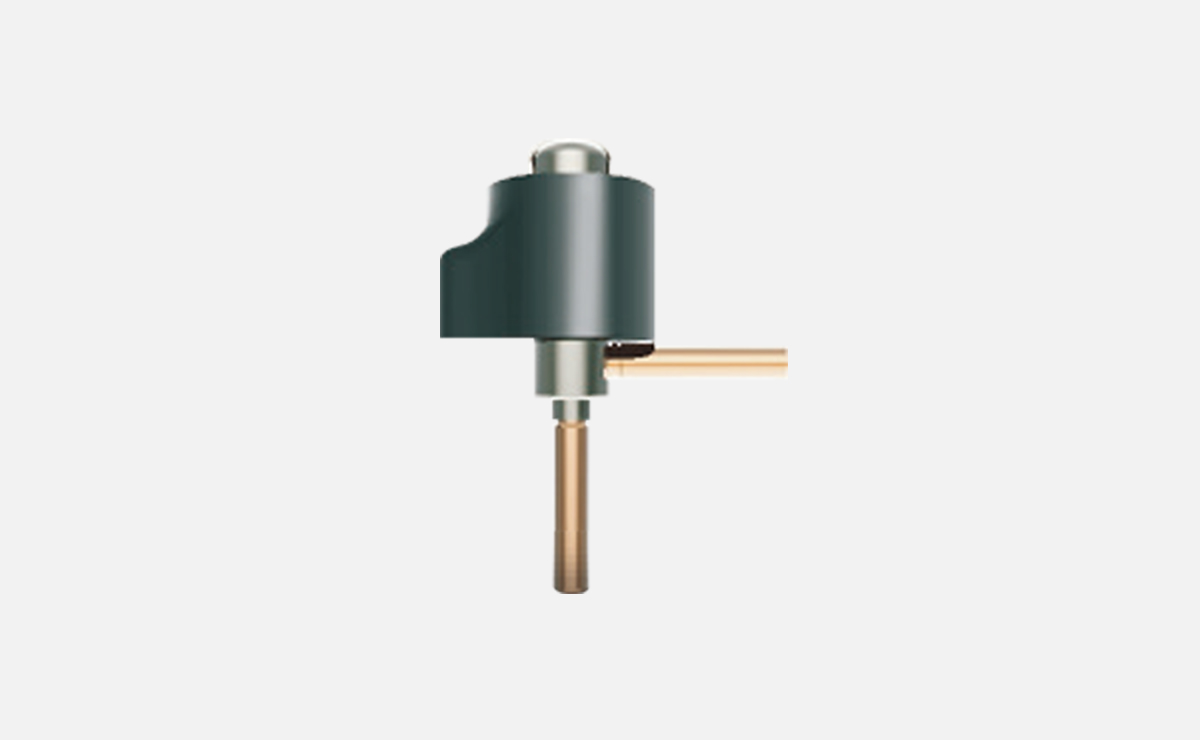

High precision electronic expansion valve
It adopts the 500 - step electronic expansion valve throttling technology, which can flexibly adjust the opening of the electronic expansion valve according to various operation modes and temperature conditions. This allows for more precise control and makes the system operation safer and more reliable. Compared with systems using ordinary thermal expansion valves for throttling, it has a wider adjustment range, a faster response speed to changes, and higher adjustment accuracy. Especially in the low - temperature mode, the system performance is more outstanding.
It adopts the 500 - step electronic expansion valve throttling technology, which can flexibly adjust the opening of the electronic expansion valve according to various operation modes and temperature conditions. This allows for more precise control and makes the system operation safer and more reliable. Compared with systems using ordinary thermal expansion valves for throttling, it has a wider adjustment range, a faster response speed to changes, and higher adjustment accuracy. Especially in the low - temperature mode, the system performance is more outstanding.

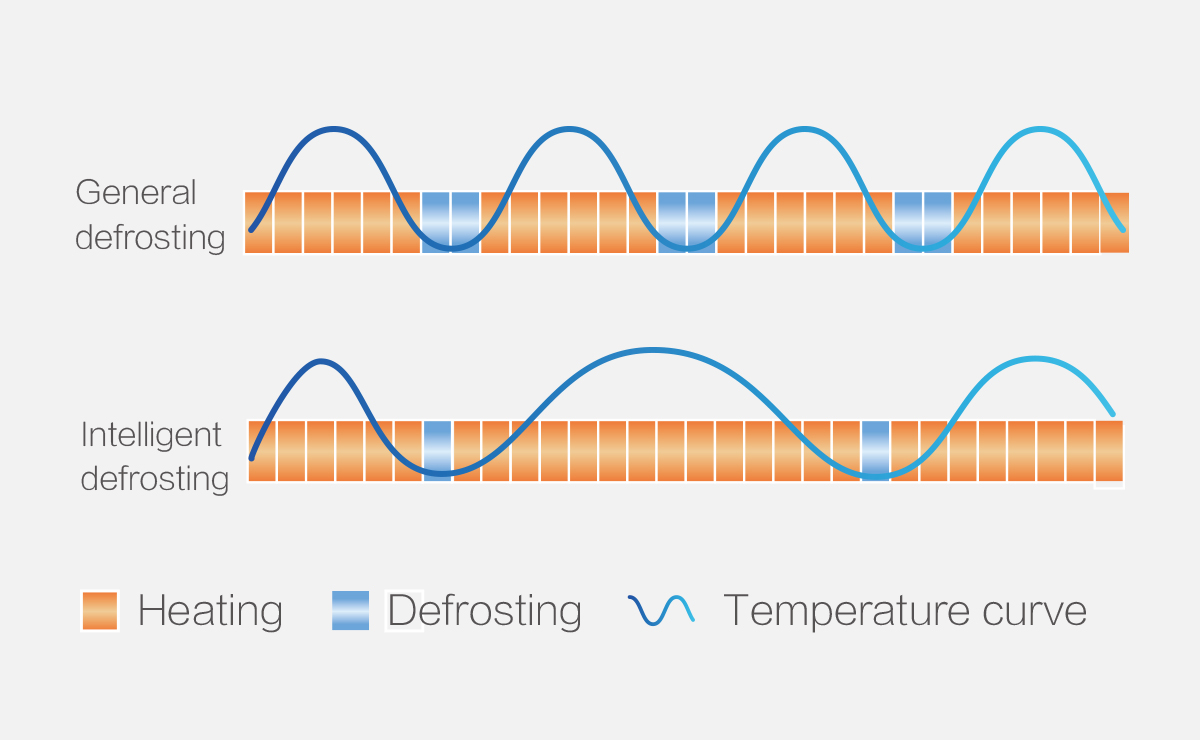

Intelligent Defrosting Technology, Reducing Thermal Decay
TCL Eagle series Air-cooled modular chillers can accurately determine the defrosting time based on the main parameters of heating operation and load changes. They defrost when there is frost and perform normal heating when there is no frost. Moreover, they can carry out forced manual defrosting according to the actual situation, effectively ensuring users' heating demands.Monitoring and Analyzing the Operating Status of the Heat Pump System.
TCL Eagle series Air-cooled modular chillers can accurately determine the defrosting time based on the main parameters of heating operation and load changes. They defrost when there is frost and perform normal heating when there is no frost. Moreover, they can carry out forced manual defrosting according to the actual situation, effectively ensuring users' heating demands.Monitoring and Analyzing the Operating Status of the Heat Pump System.

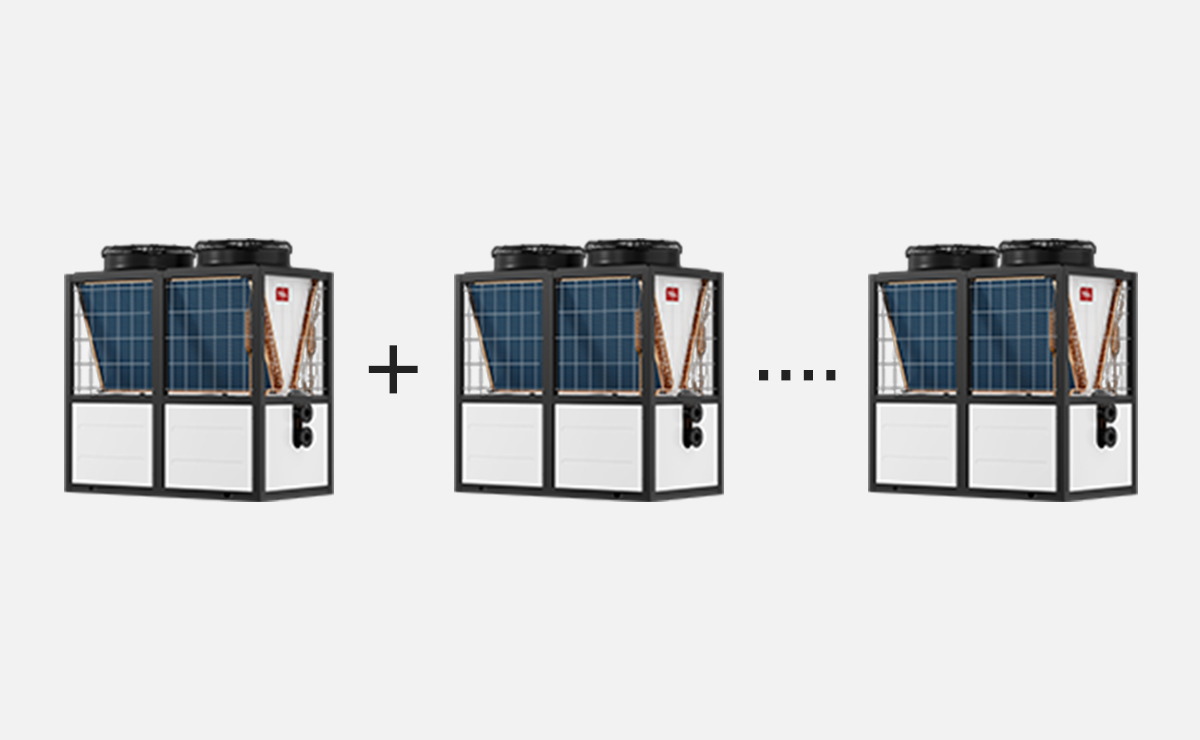

Modular Design with Free Capacity Expansion
Using a modular design, each modular unit can operate independently and serve as a backup for others. If any modular unit malfunctions, it will not affect the normal operation of other units.
It includes two basic modules of 65KW and 130KW. The capacity can be freely expanded, allowing up to 16 modular units to be connected in parallel to form combined products with capacities ranging from 65KW to 2080KW, easily meeting various needs and providing more freedom in design and installation.
Using a modular design, each modular unit can operate independently and serve as a backup for others. If any modular unit malfunctions, it will not affect the normal operation of other units.
It includes two basic modules of 65KW and 130KW. The capacity can be freely expanded, allowing up to 16 modular units to be connected in parallel to form combined products with capacities ranging from 65KW to 2080KW, easily meeting various needs and providing more freedom in design and installation.

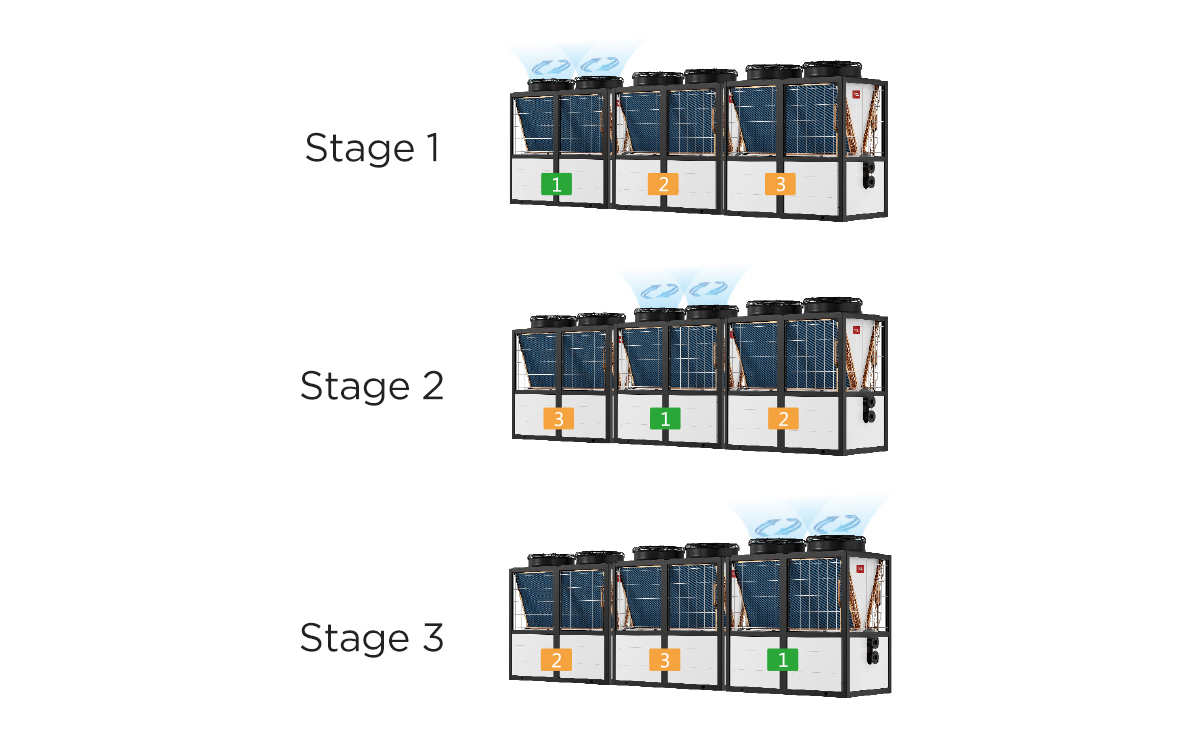

Modular Rotation Operation Technology
The unit can alternate and set the priority startup module unit based on the system load to balance the running time of each module unit, greatly improving the reliability and service life of the unit.
The unit can alternate and set the priority startup module unit based on the system load to balance the running time of each module unit, greatly improving the reliability and service life of the unit.

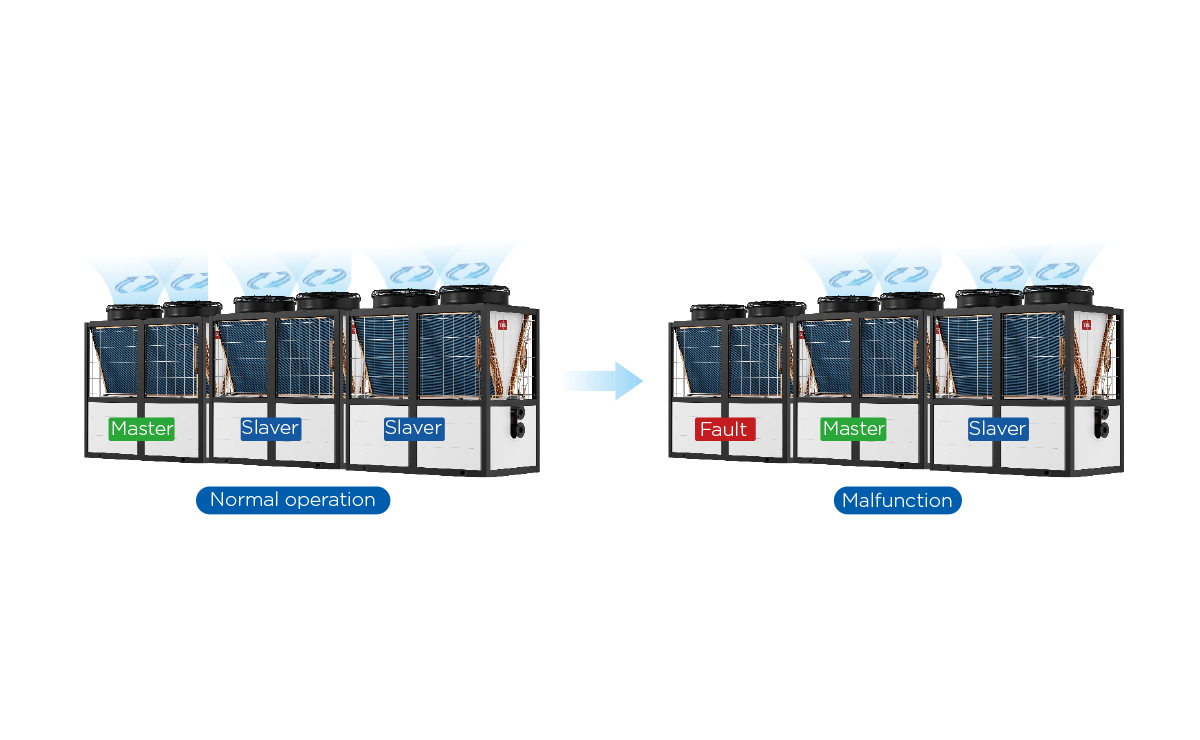

Modular Backup Operation Technology
The unit's unique backup operation technology adopts a single - module multi - system design, making different modules in the same system backup each other. In an emergency, even if one or more compressors or modular units malfunction, the system can still operate normally.
The unit's unique backup operation technology adopts a single - module multi - system design, making different modules in the same system backup each other. In an emergency, even if one or more compressors or modular units malfunction, the system can still operate normally.
Intelligent Control

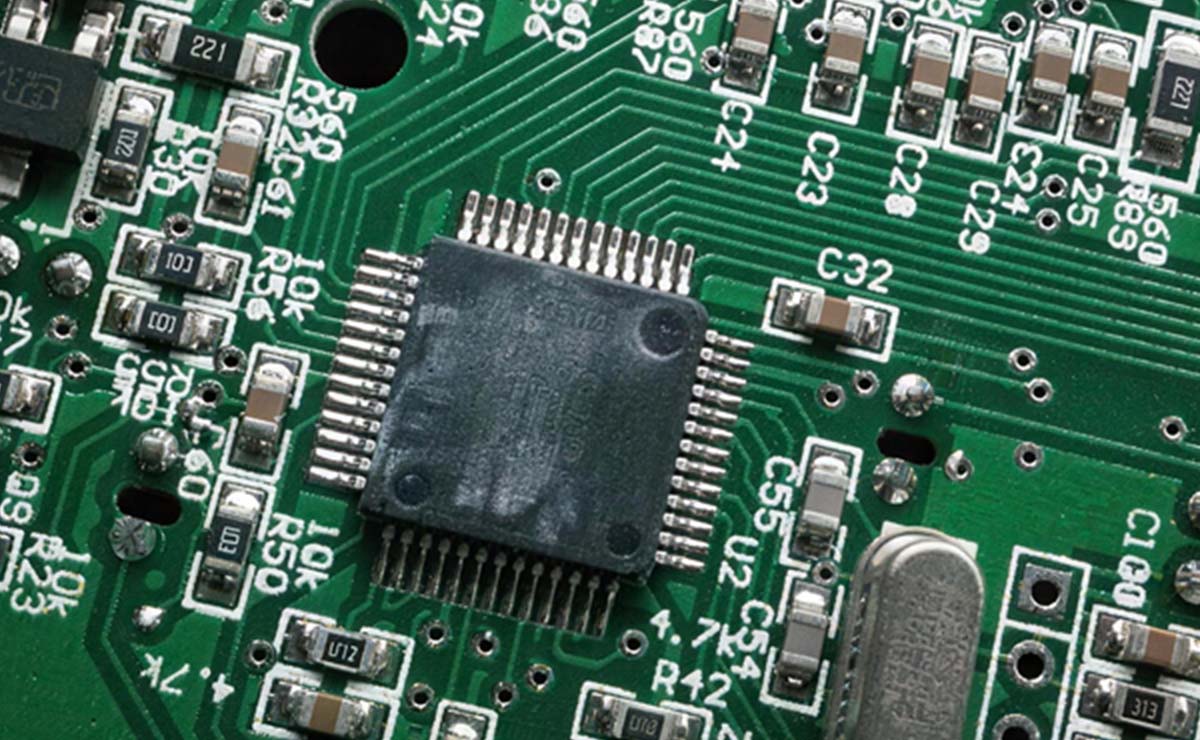

Smart Mainboard
· Microcomputer Control
· Intelligent Zoned Defrosting
· Multi-functional Protection
· Ensuring Smooth Compressor Start-up
· Intelligent Automatic Control
· Microcomputer Control
· Intelligent Zoned Defrosting
· Multi-functional Protection
· Ensuring Smooth Compressor Start-up
· Intelligent Automatic Control
Intelligent Protection System
It has various protection functions such as under - voltage, over - voltage, over - current, and over - temperature protection to ensure the efficient and reliable operation of the system.
It has various protection functions such as under - voltage, over - voltage, over - current, and over - temperature protection to ensure the efficient and reliable operation of the system.
Intelligent Self - judgment
Self - diagnosis technology automatically determines the operating status of the unit and displays operating faults automatically, making user operation and maintenance simpler.
Self - diagnosis technology automatically determines the operating status of the unit and displays operating faults automatically, making user operation and maintenance simpler.
Intelligent Detection
Password unlocking function, user - level power - on unlocking, effectively supervising the unit installation.
Password unlocking function, user - level power - on unlocking, effectively supervising the unit installation.
Centralized Control
Multiple units can be centrally controlled, and remote monitoring can also be carried out via a PC.
New - type Wired Controller The new - type wired controller has a simple, stylish and beautiful interface, integrating well with indoor decoration.
Multiple units can be centrally controlled, and remote monitoring can also be carried out via a PC.
New - type Wired Controller The new - type wired controller has a simple, stylish and beautiful interface, integrating well with indoor decoration.
Modular Alternate Operation Technology
Factories, Self - built Buildings, Residential Buildings, Hotels, Commercial Centers, Schools, Government Agencies, Sports Squares
Factories, Self - built Buildings, Residential Buildings, Hotels, Commercial Centers, Schools, Government Agencies, Sports Squares

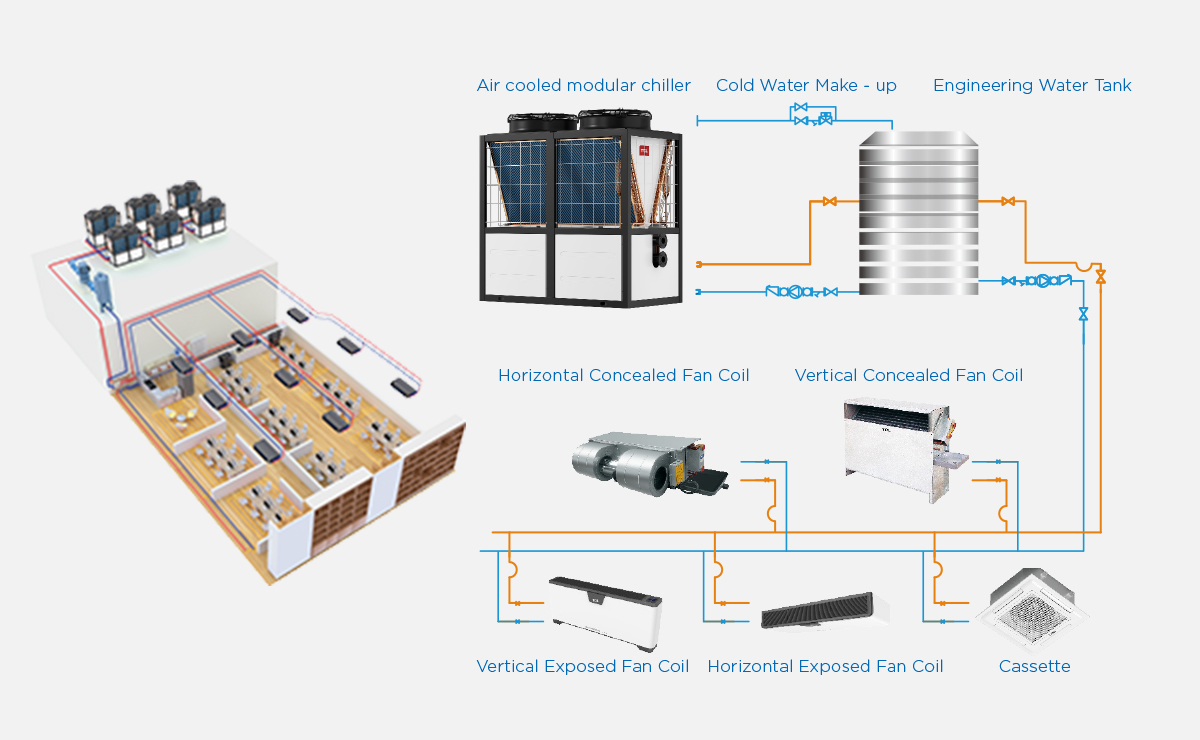

Centralized Cooling and Heating Solutions
It is a central air - conditioning unit that uses air as the cold and heat source and water as the heat transfer medium. The unit can be combined with various terminals such as fan coils, floor heating systems, and radiators to achieve cooling in summer and heating in winter.
The TCL Eagle series air - cooled modular units include 65KW and 130KW models, and up to 16 units can be connected in parallel to provide comfortable cooling and heating for commercial buildings, leisure clubs, hotels, etc.
It is a central air - conditioning unit that uses air as the cold and heat source and water as the heat transfer medium. The unit can be combined with various terminals such as fan coils, floor heating systems, and radiators to achieve cooling in summer and heating in winter.
The TCL Eagle series air - cooled modular units include 65KW and 130KW models, and up to 16 units can be connected in parallel to provide comfortable cooling and heating for commercial buildings, leisure clubs, hotels, etc.
