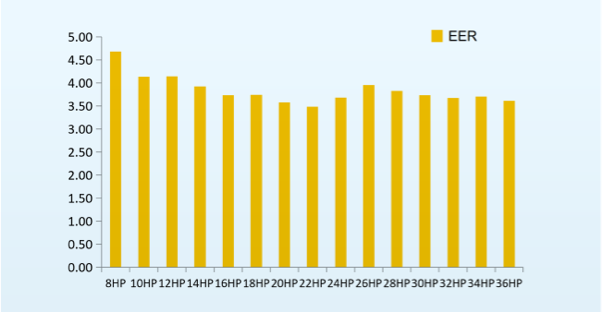

High EER/COP Value

TMV 6 series applies with high efficient full DC inverter modular units, which equipped with high efficient heat exchanger, well-known compressor , precise expansion valve, etc., to increase its EER to 4.68.

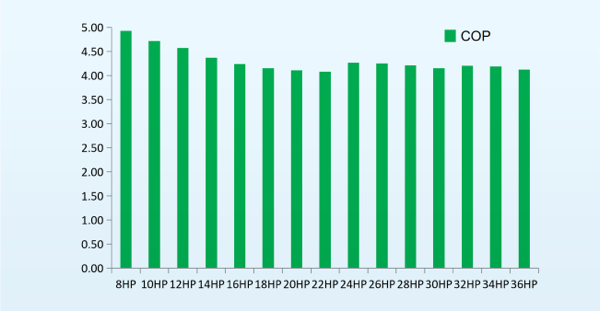

High EER/COP Value

TMV 6 series applies with high efficient full DC inverter modular units, which equipped with high efficient heat exchanger, well-known compressor , precise expansion valve, etc., to increase its EER to 4.68.

High Efficiency and Energy Saving

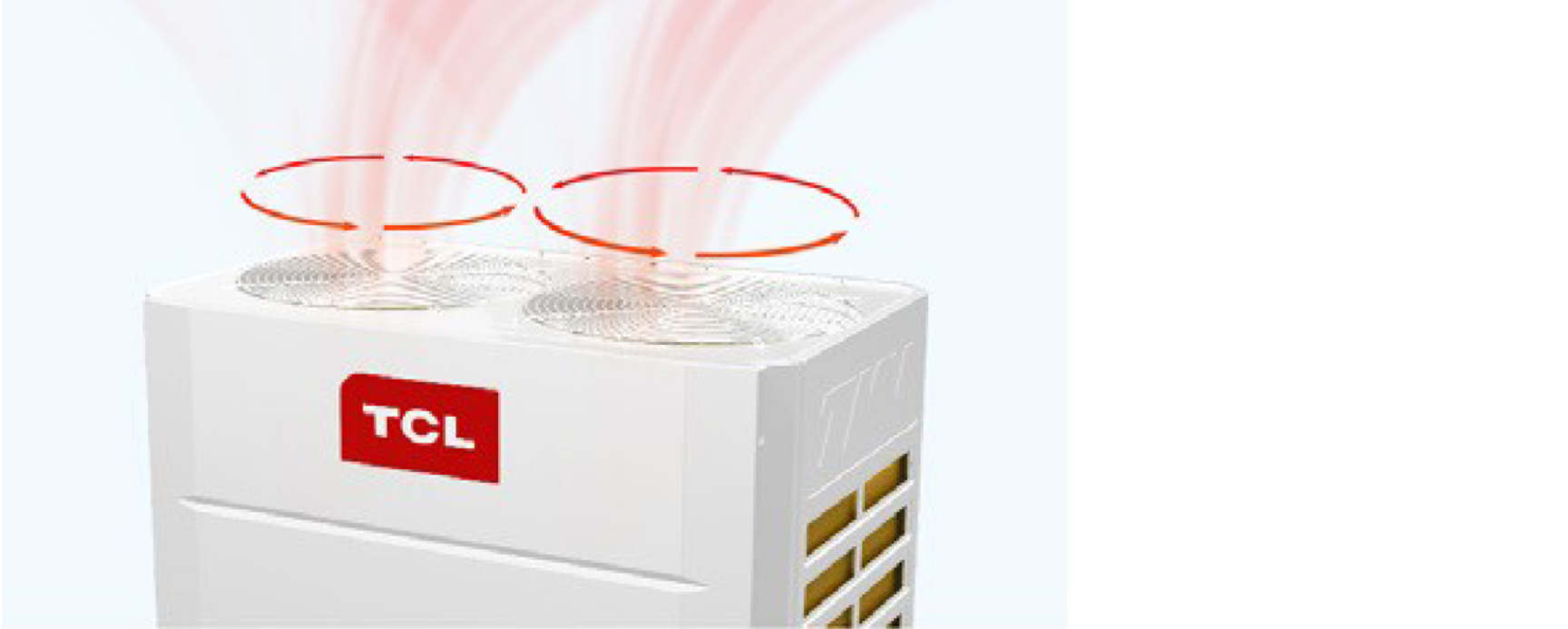

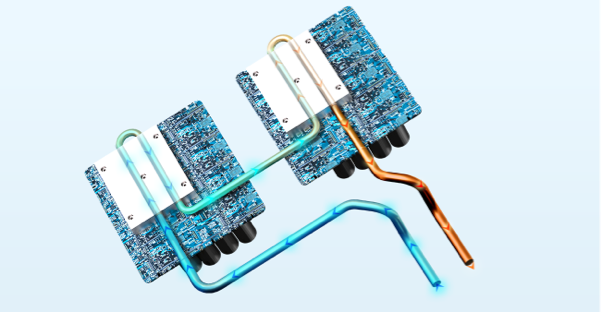

Refrigerant radiator

The wraparound refrigerant radiator can stably and efficiently take away the heat in the frequency conversion module of outdoor unit, improve the electrical reliability of the unit when working in high-temperature environment, and ensuring stable and safe operation.

Refrigerant radiator

The wraparound refrigerant radiator can stably and efficiently take away the heat in the frequency conversion module of outdoor unit, improve the electrical reliability of the unit when working in high-temperature environment, and ensuring stable and safe operation.

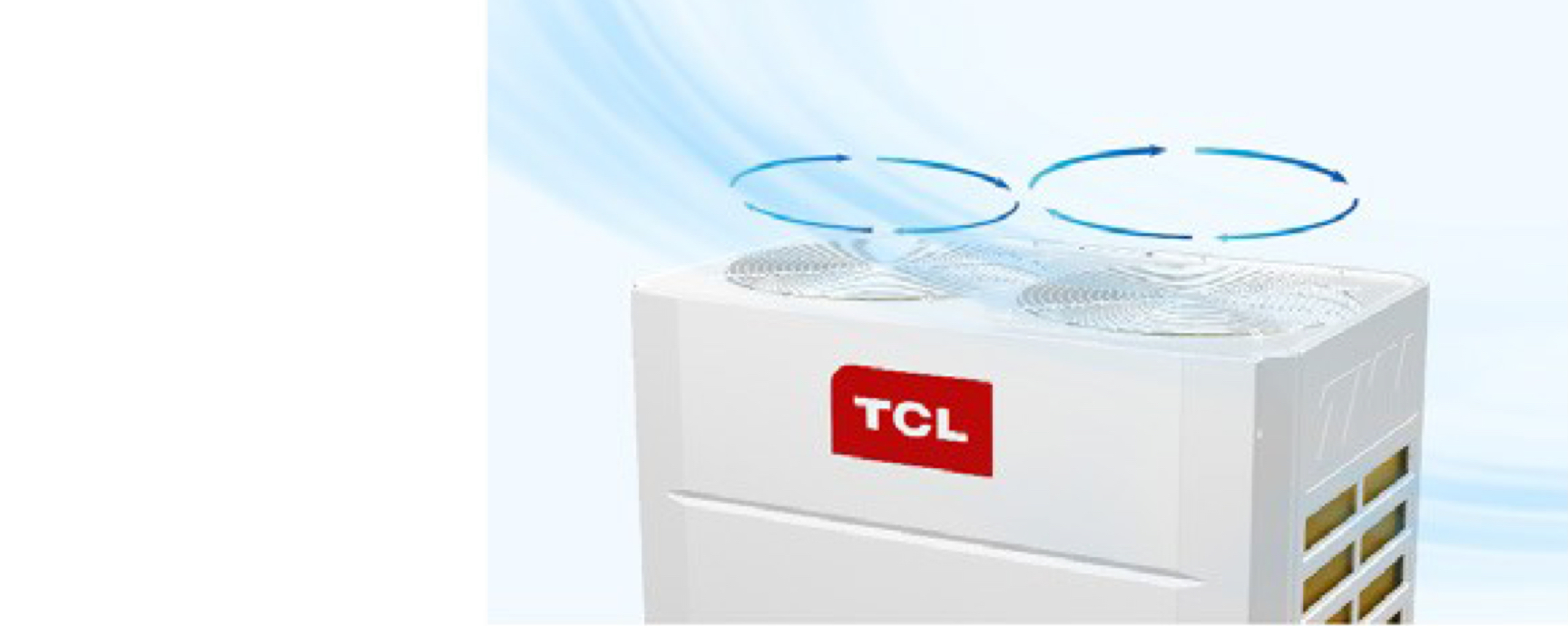

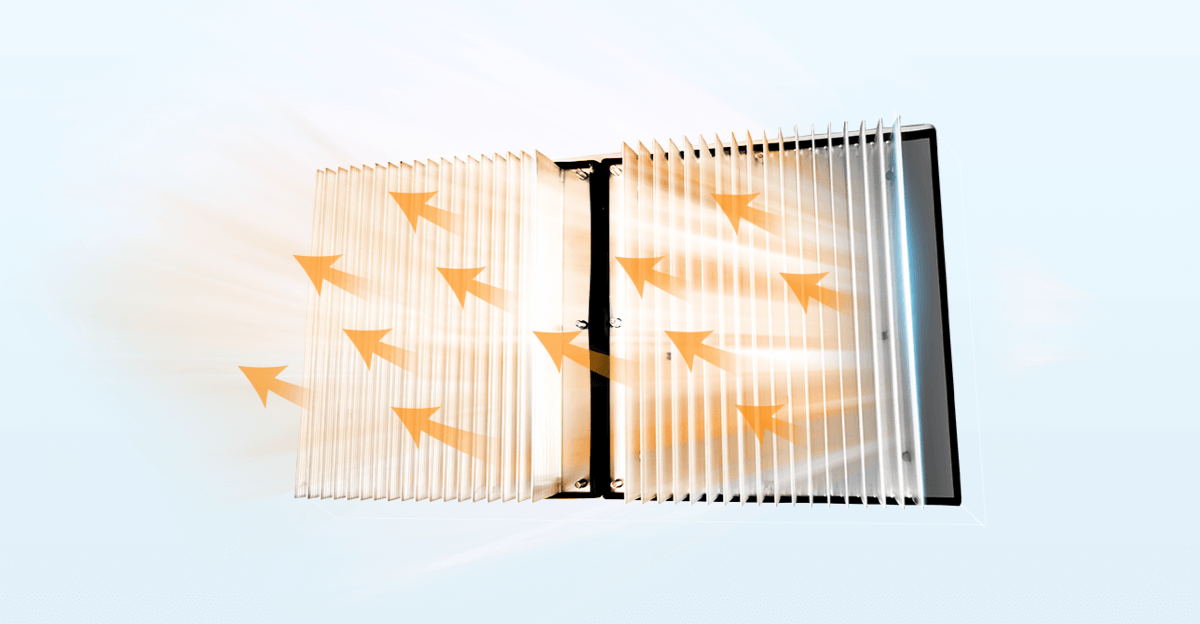

Air cooling heat dissipation

Through the fan (fan) to strengthen the ventilation, strengthen the cooling effect, to maintain stable and reliable system operation.

Air cooling heat dissipation

Through the fan (fan) to strengthen the ventilation, strengthen the cooling effect, to maintain stable and reliable system operation.

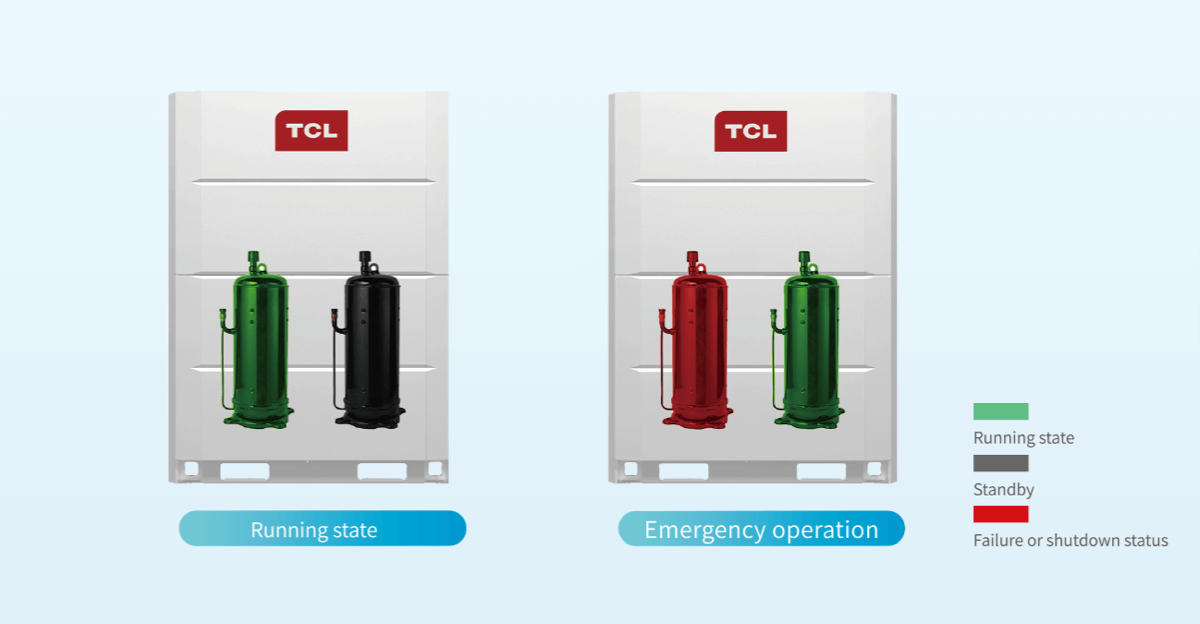

Compressor backup operation

In units with two compressors, if one compressor fails, the other compressor can run on its own, to ensure the air conditioning system can work stably.

Compressor backup operation

In units with two compressors, if one compressor fails, the other compressor can run on its own, to ensure the air conditioning system can work stably.

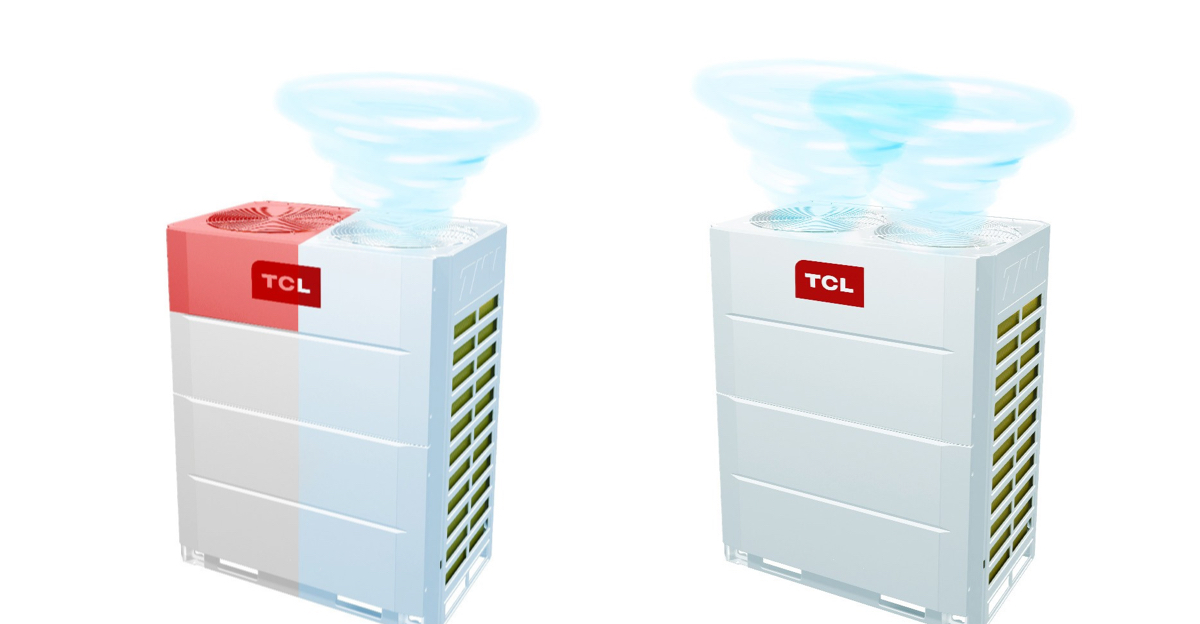

Emergency operation of fan motor

Some outdoor units are designed with dual fan, if the one fan motor fails, the other motor also can work normally, to avoid impact consumer's work and life.

Emergency operation of fan motor

Some outdoor units are designed with dual fan, if the one fan motor fails, the other motor also can work normally, to avoid impact consumer's work and life.

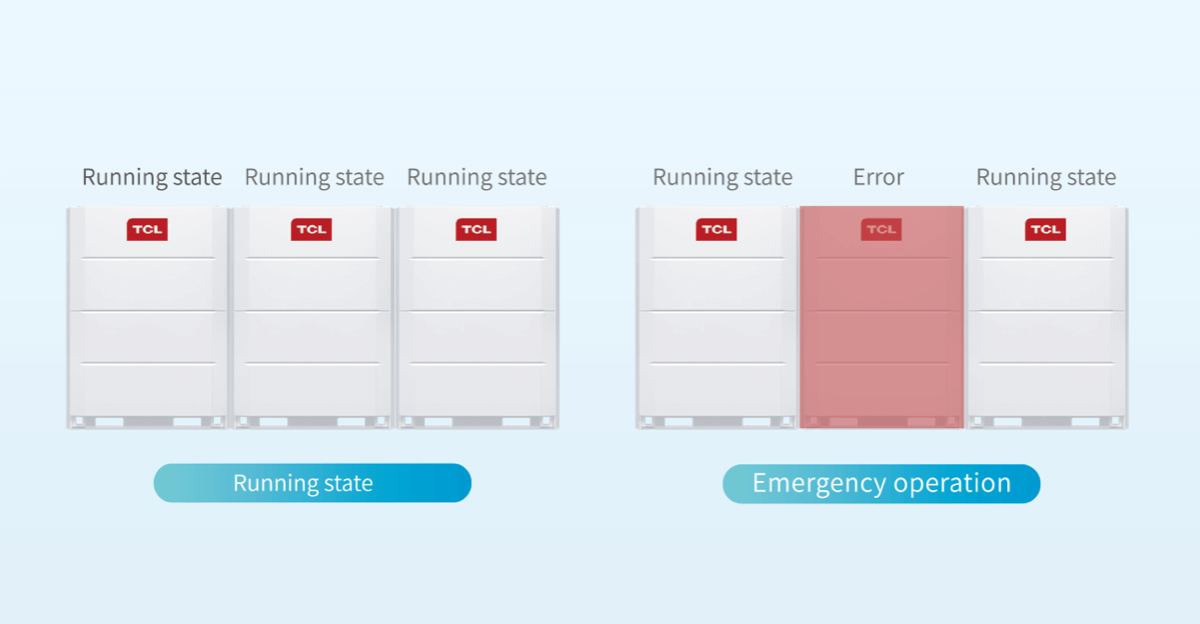

ODU backup operation

In a multi-unit system, if one outdoor unit fails, the other modules provide backup sothat the system can continue operating.

ODU backup operation

In a multi-unit system, if one outdoor unit fails, the other modules provide backup sothat the system can continue operating.

Anti-adversity function

The external force blows the outdoor unit fan torotate in reverse. At this time, start and stop the rotation of the fan, and then restart the fan motor in a forward rotation according to the normal procedure, so as not to damage the fan blades due to excessive starting current.

ODU backup operation

In a multi-unit system, if one outdoor unit fails, the other modules provide backup sothat the system can continue operating.

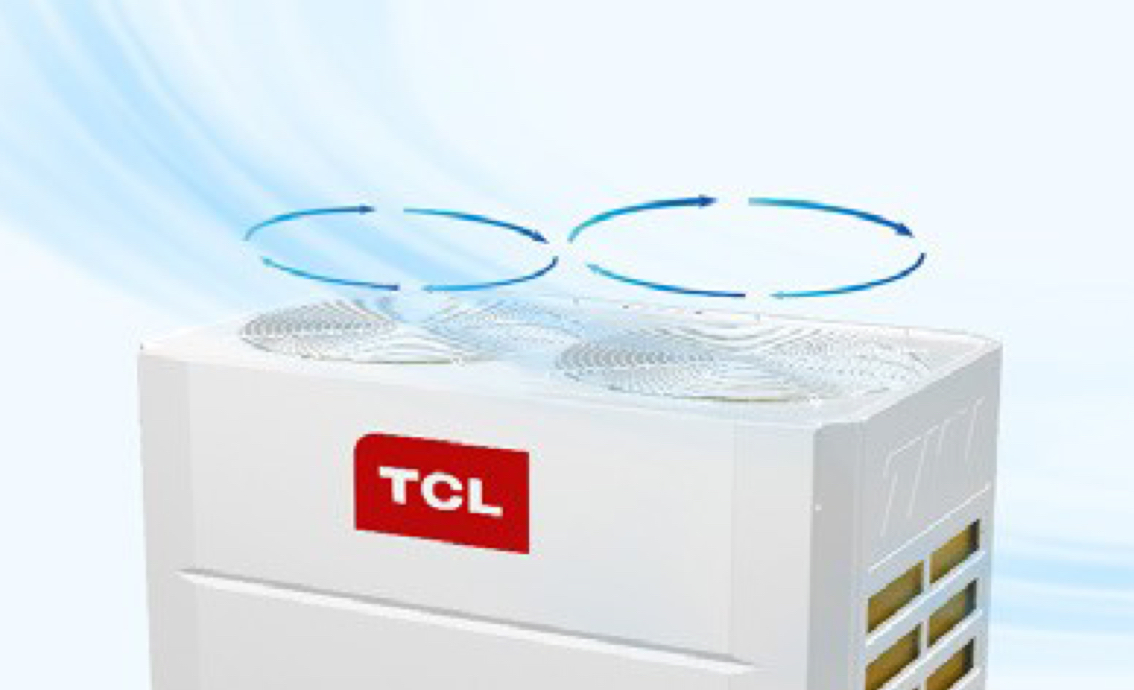

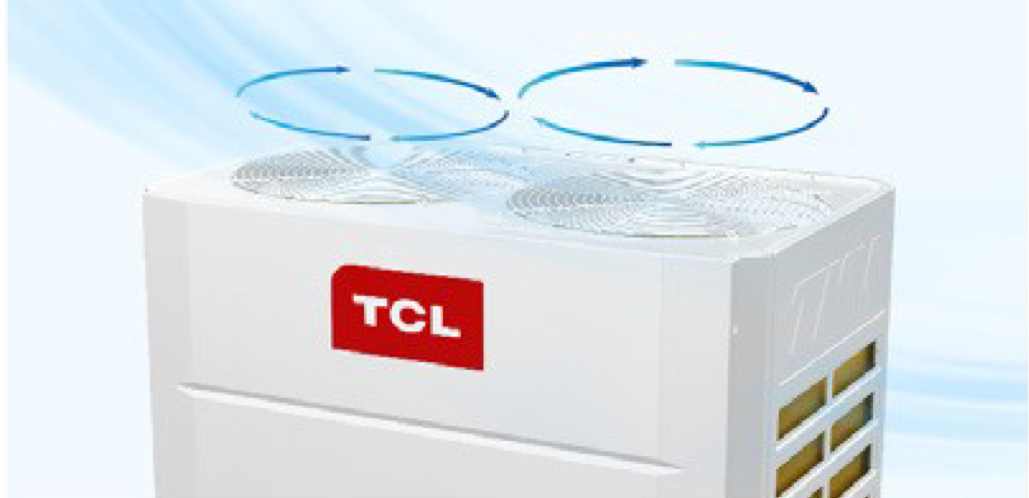

An external force causes the fan to rotate in
the opposite direction

An external force causes the fan to rotate in
the opposite direction.

An external force causes the fan to rotate in
the opposite direction

An external force causes the fan to rotate in
the opposite direction.

An external force causes the fan to rotate inthe opposite direction

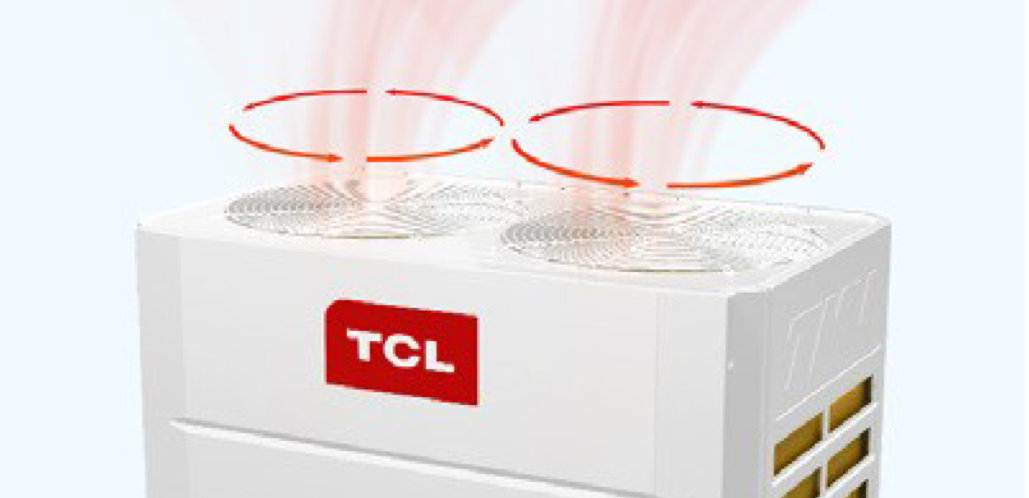

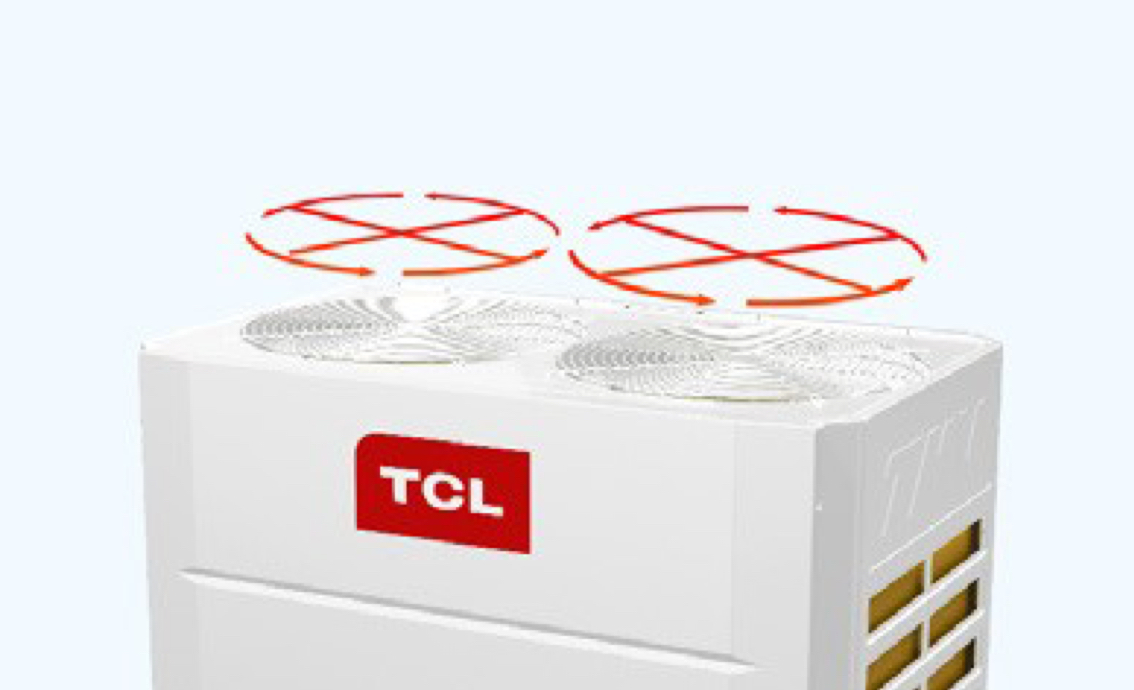

Start the unit and stop running

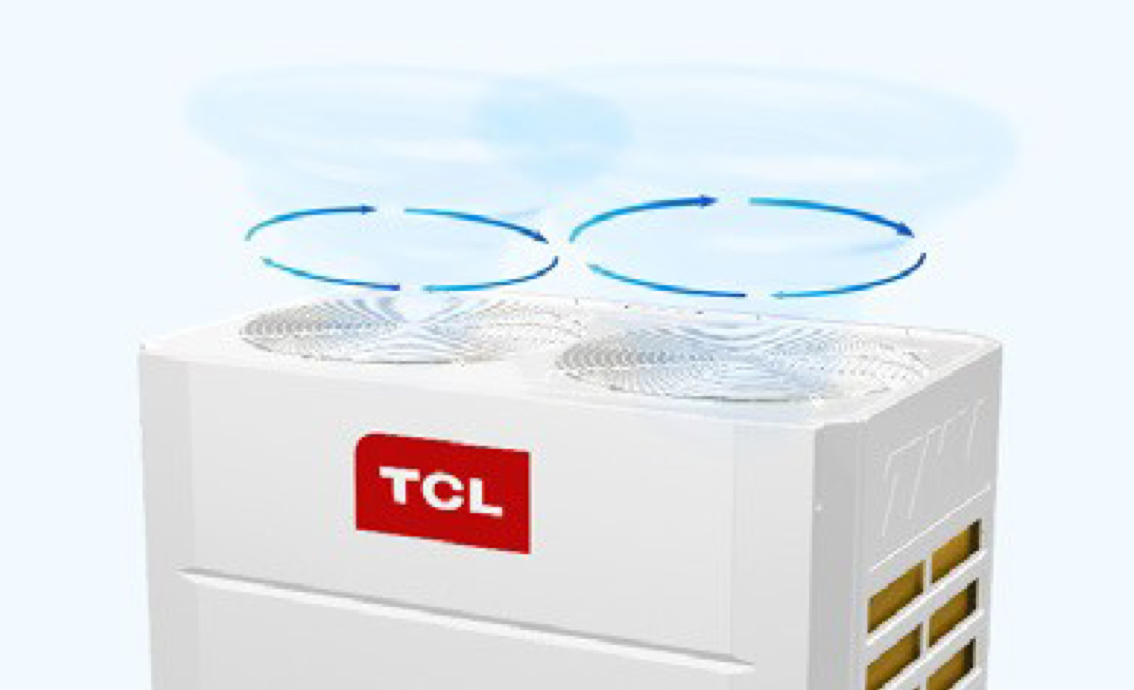

Positive rotation,low starting torque,protect thefan blade

1100m Super Long Piping Design

The industry-leading piping length, with a total length of 1100m, makes floor design more flexible.
The max distance between the lDU and the ODU (the higher ODU) is 100m.
The max distance between the lDU and the ODU (the lower ODU) is 110m
The maximum distance between indoor units is 40m.
he maximum actual single pipe length is 220m
The maximum equivalent single tube length is 240m.
The equivalent length from first indoor distributor to last indoor unit is 120m.

Emergency operation of fan motor

Some outdoor units are designed with dual fan, if the one fan motor fails, the other motor also can work normally, to avoid impact consumer's work and life.
