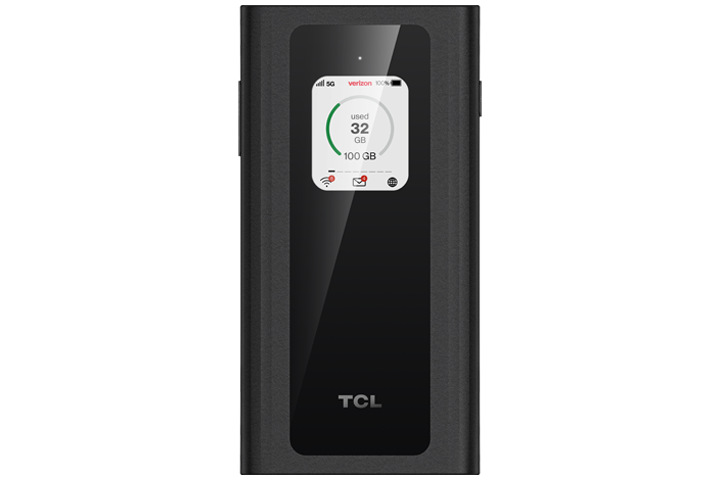

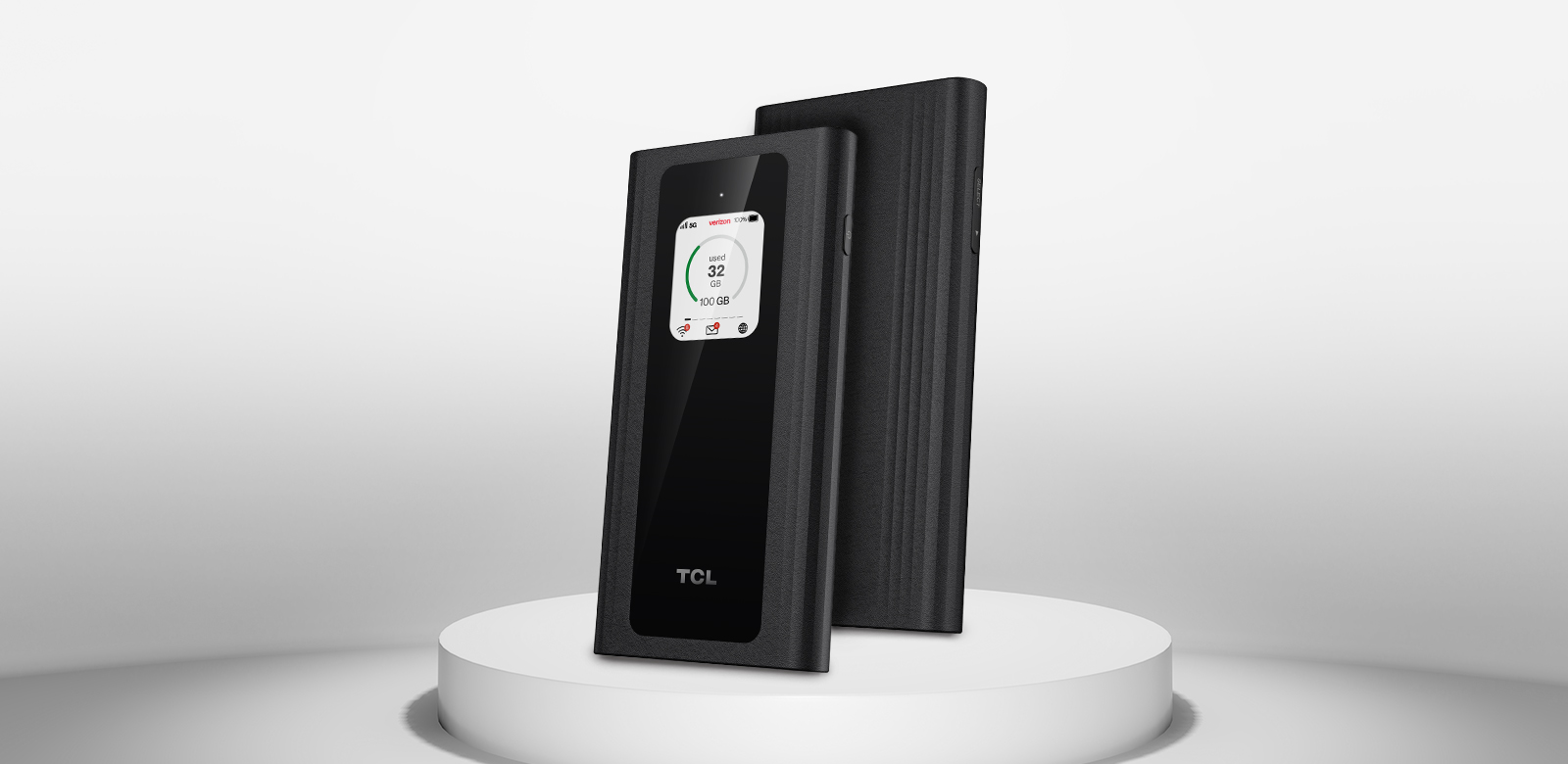

Model MW501UV

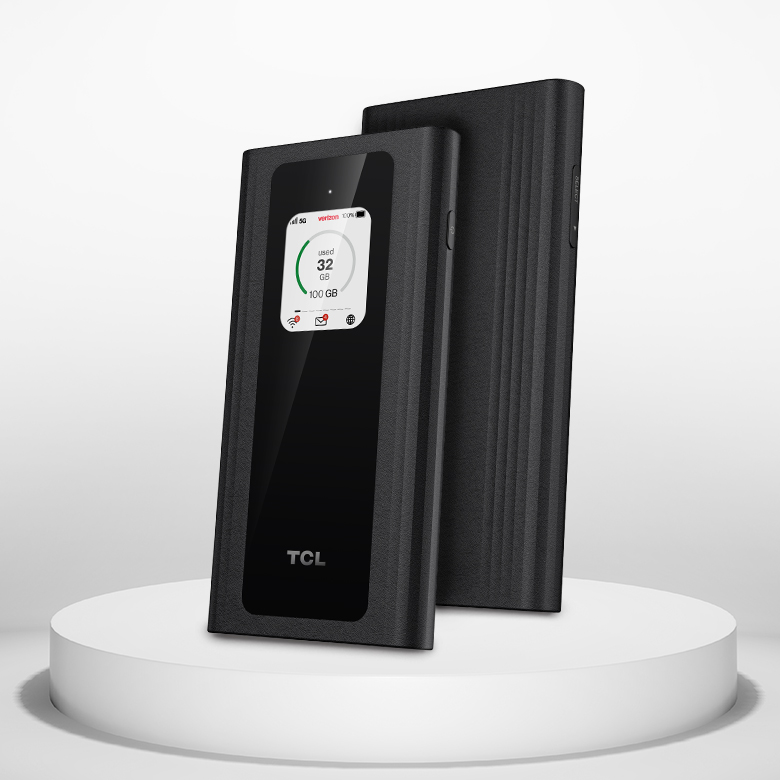

LINKZONE GO 5G
- Fast 5G on the go with MediaTek Dimensity 6300 chipset.

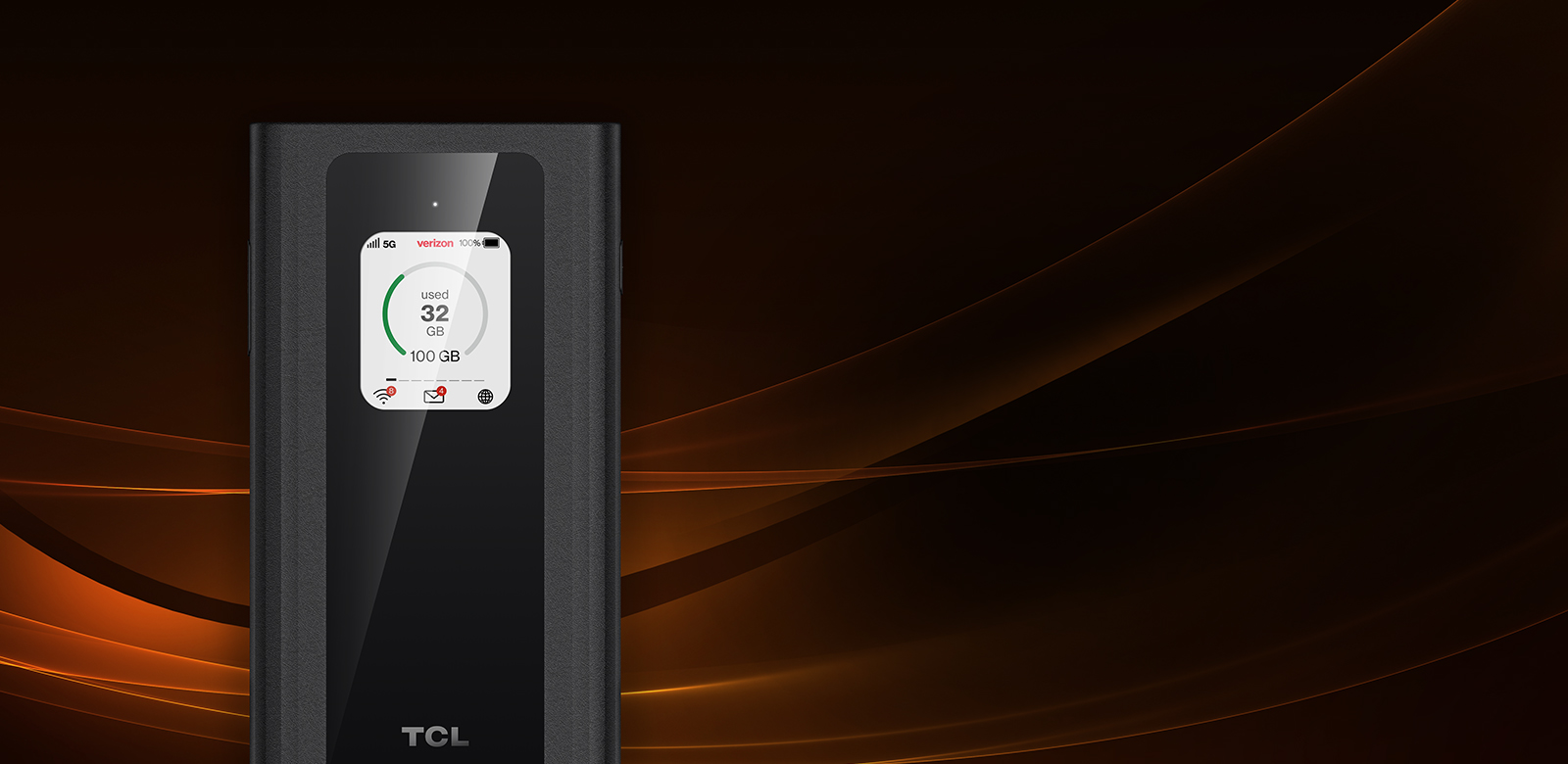

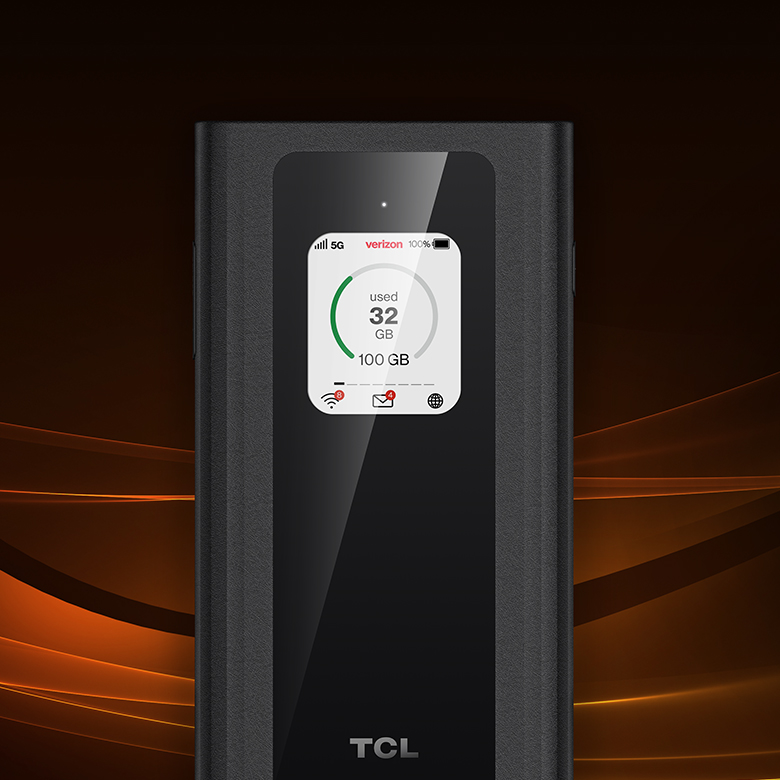

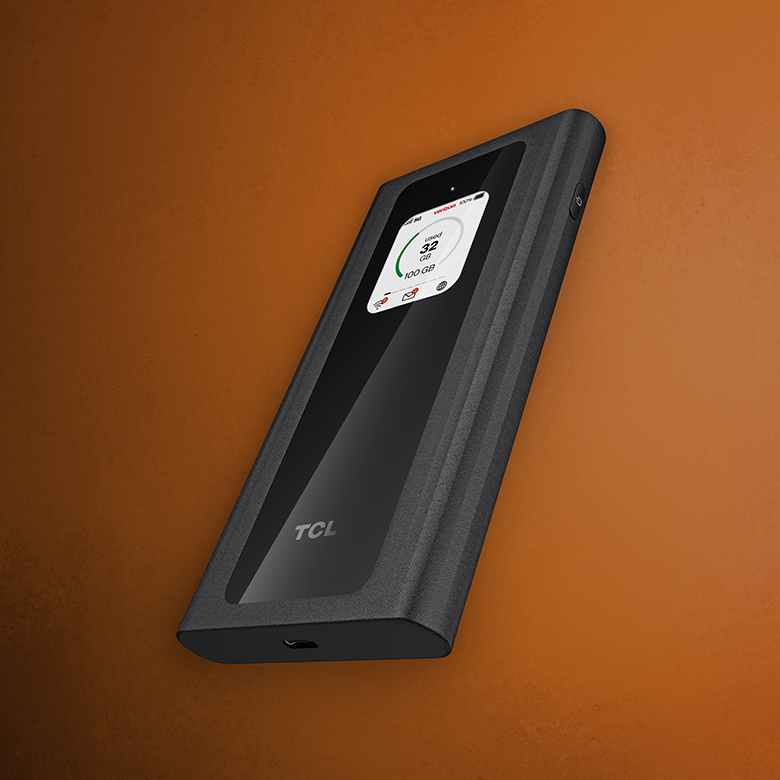

- Use the easy-to-read screen to access menus and settings.

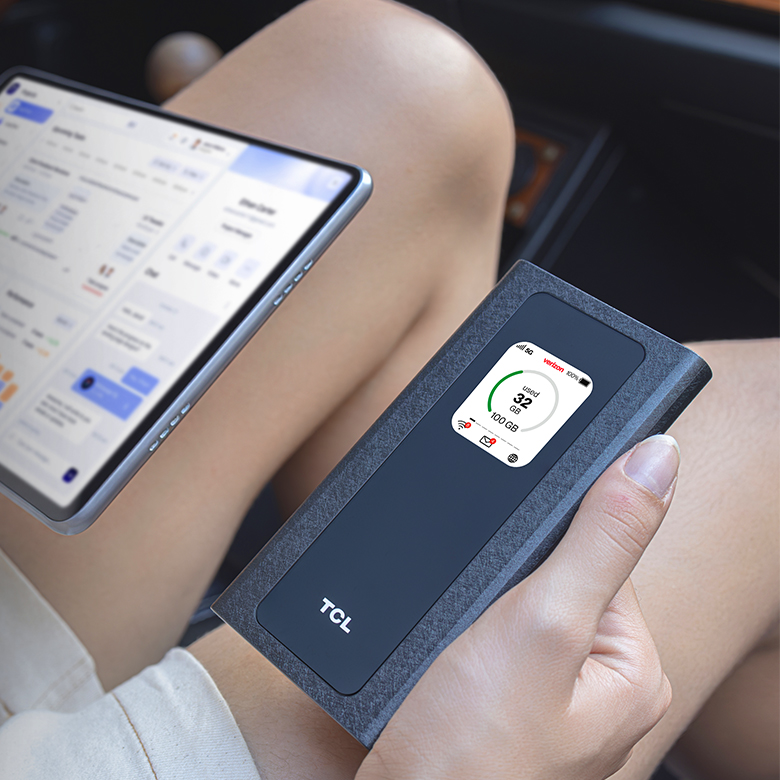

- With a 5000mAh battery, that allows you to work or play for up to 22 hours on a single charge.

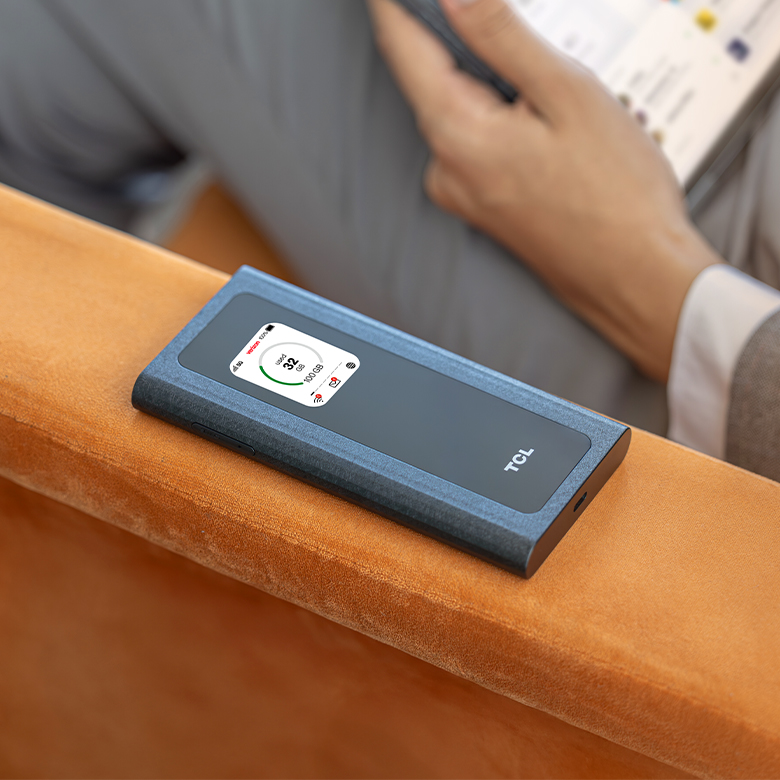

- Up to 16 devices can be connected at once.
- Provides a private, fast, and secure Wi-Fi connection.
- Overview
- Specifications
- Downloads
- Reviews
|

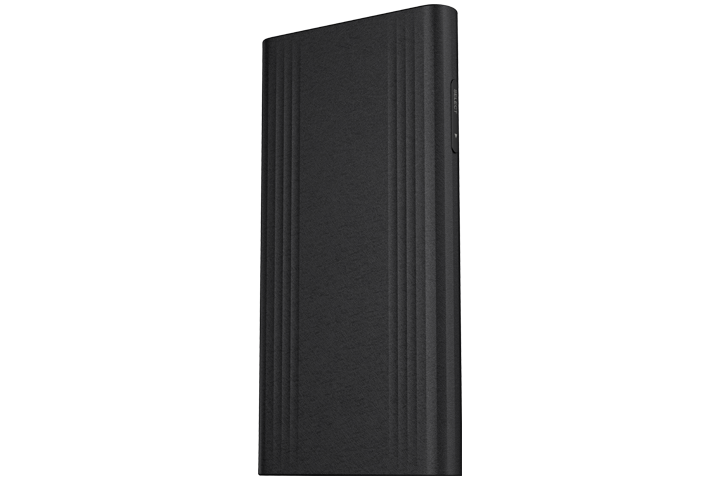

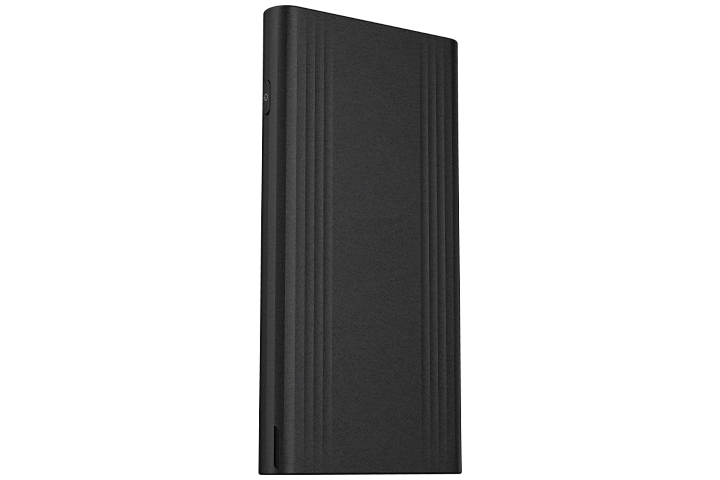

DESIGN DESIGN |
|
|
Size Size |
143 × 73 × 14.9mm 5.94in x 2.83in x 0.71in |
|
Weight Weight |
200g 7.05oz |
|
Color Color |
Black |
|
MEMORY MEMORY |
|
|
Internal Storage Internal Storage |
2GB RAM/ 4GB ROM |
|
FEATURES FEATURES |
|
|
Chipset Chipset |
MTK 24E (MT6835T) |
|
Operating System and Version No. Operating System and Version No. |
Android 14 (Go edition) |
|
CONNECTIVITY CONNECTIVITY |
|
|
Network/5G/4G/LTE Network/5G/4G/LTE |
5G: n2/5/48/66/77/78, n66/77/78(roaming) 4G: B1/2/3/4/5/7/13/20/28/48/66, B1/3/7/12/20/28(roaming) |
|
Max Data Rate (5G) Max Data Rate (5G) |
DL: 3.27Gbps UL: 1.25Gbps |
|
5G MIMO (DL) 5G MIMO (DL) |
n2/48/66/77/78 4*4 MIMO n5 2*2 MIMO |
|
5G MIMO (UL) 5G MIMO (UL) |
2x2 MIMO on n48/77/78 |
|
4G MIMO (DL) 4G MIMO (DL) |
B2/4/48/66 4*4 MIMO B1/3/5/7/12/13/20/28 2*2 MIMO |
|
4G MIMO (UL) 4G MIMO (UL) |
all band 1*1 MIMO |
|
USB Type USB Type |
USB Type C |
|
SIM Type SIM Type |
SIM 4FF |
|
Card Slot Card Slot |
1- SIM |
|
Wi-Fi Wi-Fi |
|
|
Wi-Fi Frequency Wi-Fi Frequency |
802. 11 a/b/g/n/ac, 2.4GHz/5GHz, up to 433Mbps |
|
Wi-Fi Devices Wi-Fi Devices |
Up to 165 |
|
Encryption Encryption |
WPA, WPA2, WPA3 |
|
SSID SSID |
Single SSID Broadcast Guest Network |
|
BATTERY BATTERY |
|
|
Size Size |
5000mAh (removable) |
|
On-The-Go Charging On-The-Go Charging |
NA |
|
Usage Time Usage Time |
Up to 22 hrs |
|
Standby Time Standby Time |
Up to 600 hrs |
|
Charging Time Until Full Charging Time Until Full |
2h |
|
MANAGEMENT TOOLS MANAGEMENT TOOLS |
|
|
Languages Supported Languages Supported |
English, Spanish |
|
OS Supported OS Supported |
Windows & Mac Mobile & Desktop UI |
|
SMS SMS |
Supported |
|
App App |
TCL Connect |
|
Web Access Web Access |
Yes, http://my.mobilehotspot |
|
ENVIRONMENT ENVIRONMENT |
|
|
Operation Temperature Operation Temperature |
-10 to +55o C |
|
Operation Humidity Operation Humidity |
10% to 80% |
|
IP Rating IP Rating |
IP 5X |
|
IN BOX IN BOX |
|
|
Quick Reference Guide (QRG) Quick Reference Guide (QRG) |
Yes |
|
Charger Charger |
9V/2A 18W charger |
|
Cable Cable |
Type C USB Cable |
|

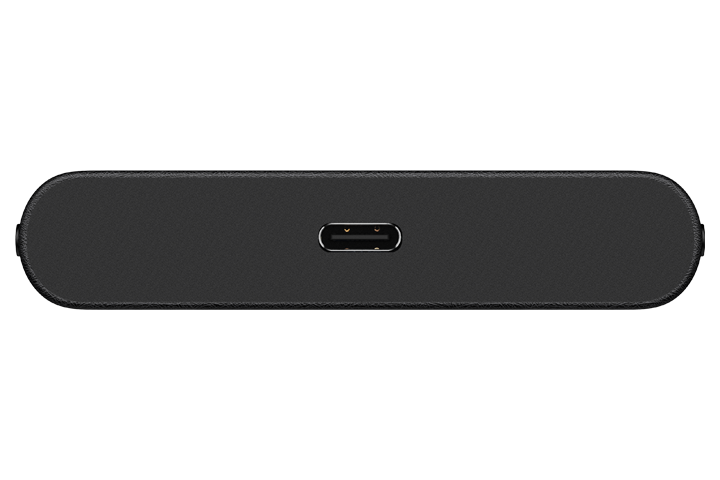

Connector on Device Connector on Device |
Type C USB Port |
|
Others Others |
SIM, Terms & Conditions, Quick Start Guide, Warranty and Safety Information |
1. Supports 16 Devices per band, up to 16 devices
2. 5G Ultra-Wideband is available only in parts of select cities. 5G Nationwide available in 2700+ cities.
3. Requires download from the Google Play Store or App Store for iPhone®
4. Battery life and charge cycles vary with use, settings, and other factors; actual results may vary.
