Model MW513UW

LINKZONE 5G UW

  • 5G speeds on the go
  • Use the easy-to-read touchscreen
  • With a 4500mAh battery it can be used to charge your phone or other devices while on the go.
  • Up to 32 devices5 can be connected at once.
  • Provides a private, fast, and secure Wi-Fi connection.

High Speed 5G Internet On The Go

The TCL LINK ZONE 5G UW keeps you connected with 5G service on the go. Create a secure Wi-Fi network for up to 32 devices5. Monitor connected devices and customize your settings using the 2.4" display, the TCL Connect app or the web-based management tool. With a 4500mAh battery the TCL LINKZONE 5G UW can be used to charge other mobile devices with On-The-Go (OTG) reverse charging2.

High-Speed 5G Internet

The new TCL LINKZONE 5G UW provides reliable and secure 5G Internet That can be carried with you everywhere. Create your own secure wireless network so you can work, stream, and play on the go.

Intuitive User Interface

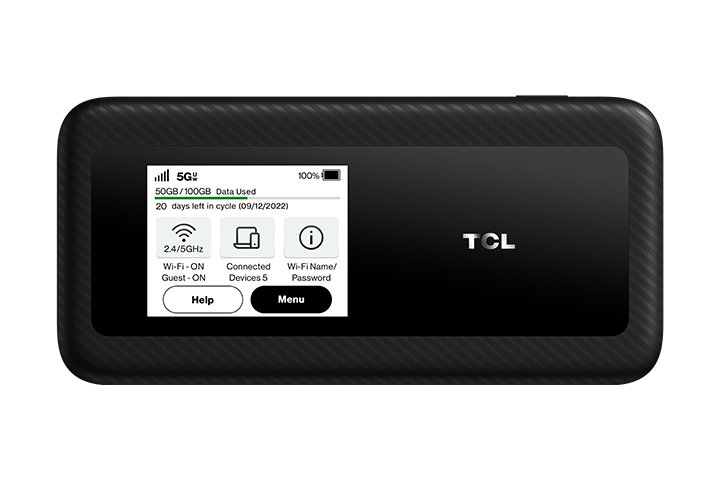

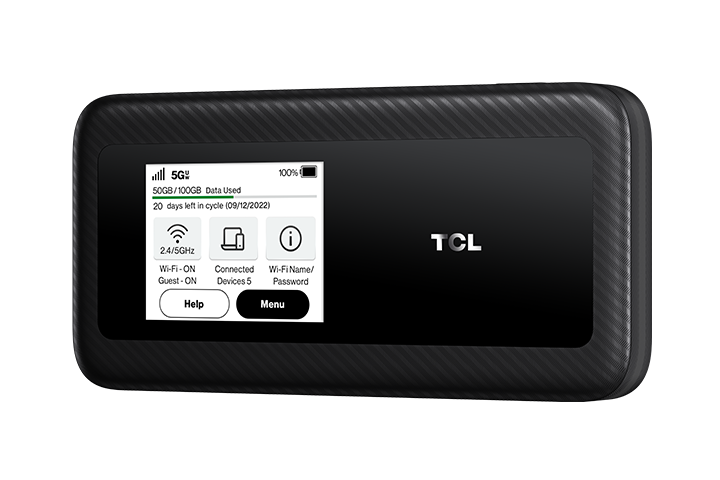

A 2.4" touchscreen helps you navigate the menus with ease. Backlit display makes it readable in any condition from dimly lit coffee shops to bright sunny beaches.

Easy to Access and Setup

Use the TCL Connect Appor web-based management tool to manage guest access, check messages, track data usage and adjust settings.

Control how Access is Granted

Easily customize the network name (SSID) and password so you can identify and share your connection or create a guest network to keep your data private and secure.

All-Day Connectivity

The TCL LINKZONE 5G UW has a 4500mAh battery that allows you to work or play for up to 9 hours5 on a single charge. With the ability of On-The-Go reverse charging2, your smartphone and other devices can be recharged when needed.

Connect More of What You Love

Connect up to 32 devices1 with ease, designed to allow the entire team to collaborate or keep the whole family connected while on the go. Switch between 5GHz and 2.4Hz bands for more stable streaming for all your devices.

Functional Compact Design

The TCL LINKZONE 5G UW is a lightweight device with a compact design, which enables it to easily be tucked in your pocket or bag for a private internet connection.

DESIGN

DESIGN

No Tooltip

Size

Size

No Tooltip

151mm x 72mm x17.9mm

5.94in x 2.83in x 0.71in

Weight

Weight

No Tooltip

210g

7.4oz

Color

Color

No Tooltip

Black

MEMORY

MEMORY

No Tooltip

Internal Storage

Internal Storage

No Tooltip

1GB RAM/ 1GB ROM

FEATURES

FEATURES

No Tooltip

Chipset

Chipset

No Tooltip

Qualcomm SDX62-0

Operating System and Version No.

Operating System and Version No.

No Tooltip

Linux 5.4

Button

Button

No Tooltip

Power

Interface

Interface

No Tooltip

1x Nano-SIM 4FF

1x Reset hole

1x Type C 3.0

1x LAN RJ45 Port

CONNECTIVITY

CONNECTIVITY

No Tooltip

Network/5G/4G/LTE

Network/5G/4G/LTE

No Tooltip

5G Sub6: n2/n5/n46/n48/n66/n77/n78

5G mmWave: n260, n261, n257(Roaming)

SA & NSA both for FR1 & FR2: Yes

LTE: B2/B4/B5/B12/B13/B46/B48/B66

LTE Roaming: B1/B3/B7/B20/B28

LTE CAT 19

LTE MIMO

LTE MIMO

No Tooltip

DL 2x2

USB Type

USB Type

No Tooltip

USB Type C

SIM Type

SIM Type

No Tooltip

SIM 4FF

Card Slot

Card Slot

No Tooltip

1 -SIM

Wi-Fi

Wi-Fi

No Tooltip

Wi-Fi Frequency

Wi-Fi Frequency

No Tooltip

2.4GHz /5GHz

802.11 b/g/n/ax

Wi-Fi Devices

Wi-Fi Devices

No Tooltip

Up to 325

Encryption

Encryption

No Tooltip

WPA, WPA2, WPA3

SSID

SSID

No Tooltip

Single SSID Broadcast

Guest Network

WPS

WPS

No Tooltip

Supported

BATTERY

BATTERY

No Tooltip

Size

Size

No Tooltip

4500mAh (removable)

On-The-Go Charging

On-The-Go Charging

No Tooltip

Supported1

Usage Time

Usage Time

No Tooltip

Up to 8 hrs

Standby Time

Standby Time

No Tooltip

Up to 18 days

MANAGEMENT TOOLS

MANAGEMENT TOOLS

No Tooltip

Languages Supported

Languages Supported

No Tooltip

English, Spanish

OS Supported

OS Supported

No Tooltip

Windows & Mac

Mobile & Desktop UI

SMS

SMS

No Tooltip

Supported

App

App

No Tooltip

TCL Connect

Web Access

Web Access

No Tooltip

Yes, http://my.mobilehotspot

ENVIRONMENT

ENVIRONMENT

No Tooltip

Operation Temperature

Operation Temperature

No Tooltip

-10 to 55°C

Operation Humidity

Operation Humidity

No Tooltip

10% to 80%

IP Rating

IP Rating

No Tooltip

IP 40

IN BOX

IN BOX

No Tooltip

In Box

In Box

No Tooltip

Quick Reference Guide (QRG), 9V/2A 18 W charger, Type C USB Cable, Warranty and safety information

116 Devices per band, up to 32 devices.

2 Requires OTG cable, sold separately.

35G Ultra-Wideband available only in parts of select cities. 5G Nationwide available in 2700+ cities.

4Requires download from Google Play store or App Store for iPhone®

Battery life and charge cycles vary with use, settings, and other factors; actual results may vary.

Actual product features and specifications (including but not limited to appearance, color and size), as well as actual display contents (including but not limited to backgrounds, interface and icons) may vary by country. Please consult the point of sale for further information.

The product pictures shown are for reference only. The images shown on the display screen are simulated and for demonstration purposes only. Please take actual products as standard.
